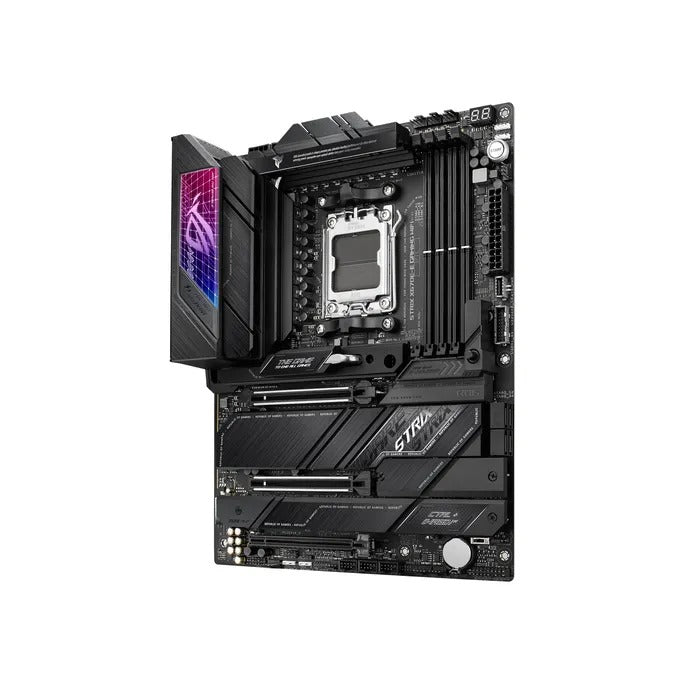

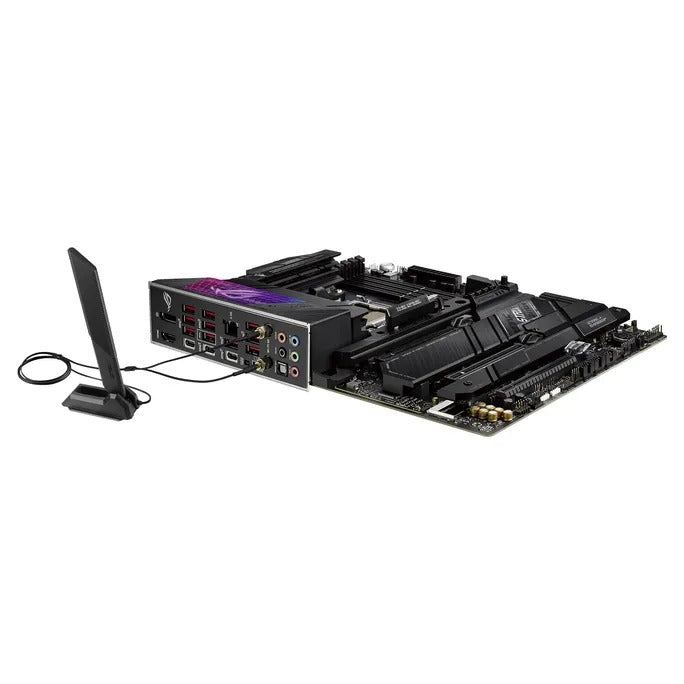

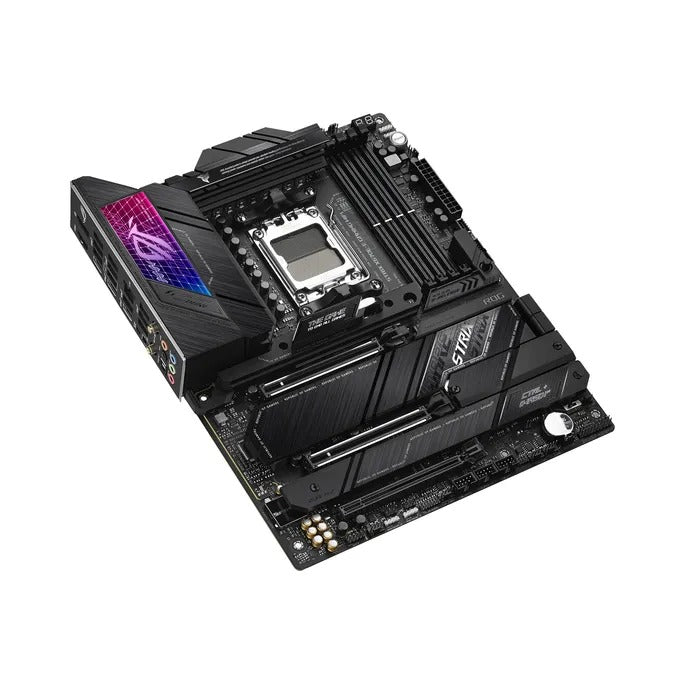

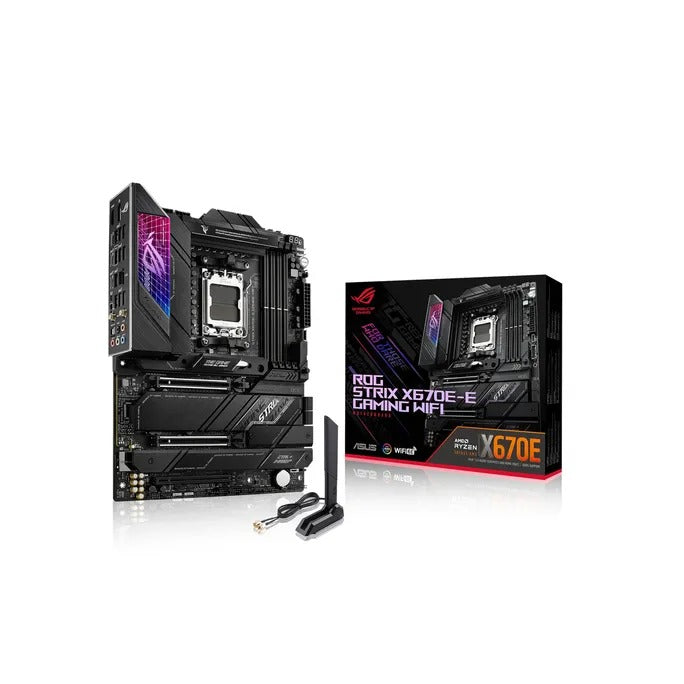

ASUS ROG Strix X670E-E Gaming WIFI - Mainboard

Hinweis: Nach §25a UStG wird im Rahmen der Differenzbesteuerung keine Umsatzsteuer ausgewiesen.

• Formfaktor/CPU

  ATX Mainboard mit Sockel AMD AM5 für AMD RYZEN 7000 Serie
• Chipsatz

  AMD X670E
• Arbeitsspeicher

  128 GB maximaler Arbeitsspeicherbis 6400MHz maximale Taktung4x RAM-Slots (Steckplätze für Arbeitsspeicher)Speichertyp: DDR5Dual Channel-Architektur
• Graphik

  Radeon Vega Grafik (Ryzen CPU) Grafikchipsatz
• Steckplätze

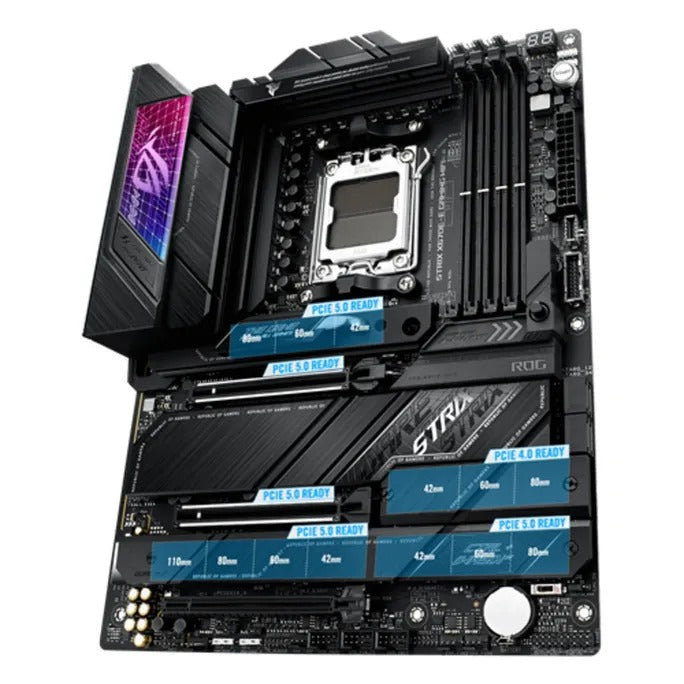

  AMD Ryzen™ 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)AMD X670 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)
• Anschlüsse

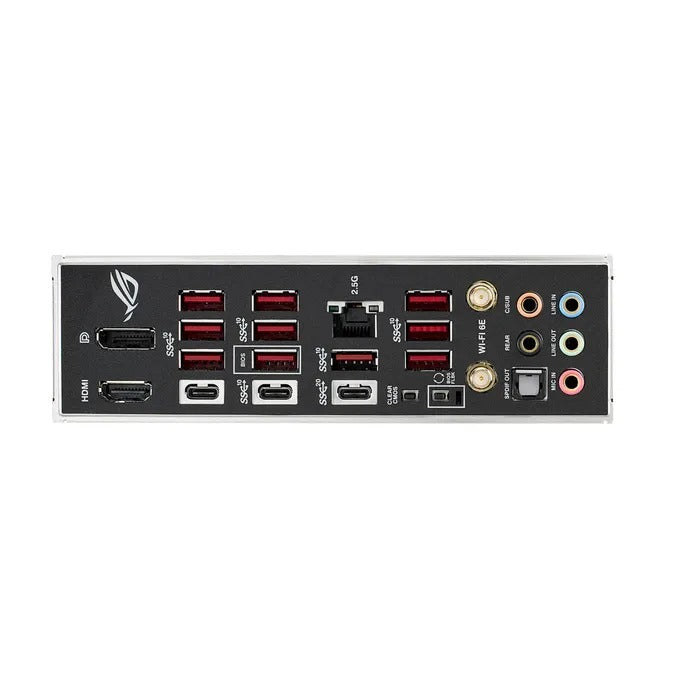

  Interne Anschlüsse:Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports3 x USB 2.0 headers support additional 6 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Alteration Mode Switch1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x Start button1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ headerExterne Anschlüsse:1 x USB 3.2 Gen 2x2 port (1 x Type-C®)12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C®)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® I225-V 2.5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button
• Netzwerk/ Kommunikation

  1 x Intel® 2.5Gb Ethernet2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth v5.2
• Sound

  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Besonderheiten

  ROG RGB Armor, Extreme Engine Digi+, ROG Exclusive Software, ASUS Dual Intelligent Processors

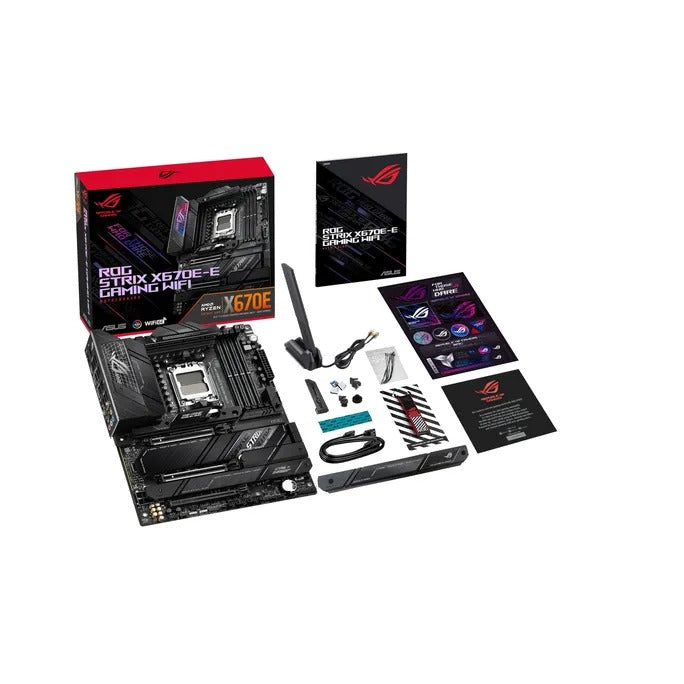

• Lieferumfang

  1 x Handbuch1 x USB Treiber und UtilitiesCables2x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas1 x Cable ties pack1 x Massive PCIe® 5.0 M.2 Bundled Heatsink1 x M.2 Q-Latch package for M.2 backplate1 x M.2 Q-Latch package1 x ROG Graphics card holder2 x Rubber Packages for M.21 x Rubber Package for M.2 backplate1 x ROG key chain1 x ROG Strix sticker1 x ROG Strix thank you card
