ASRock

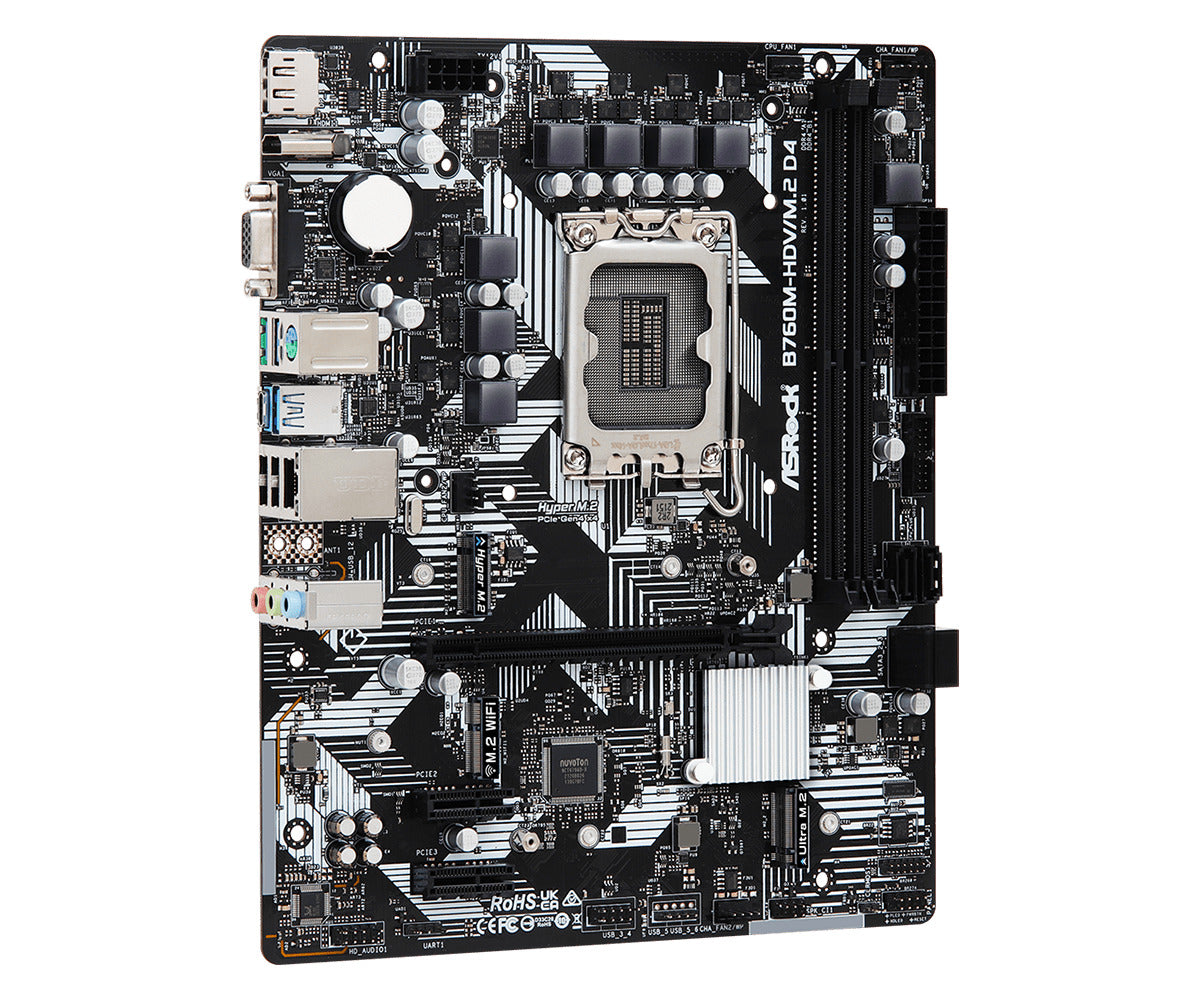

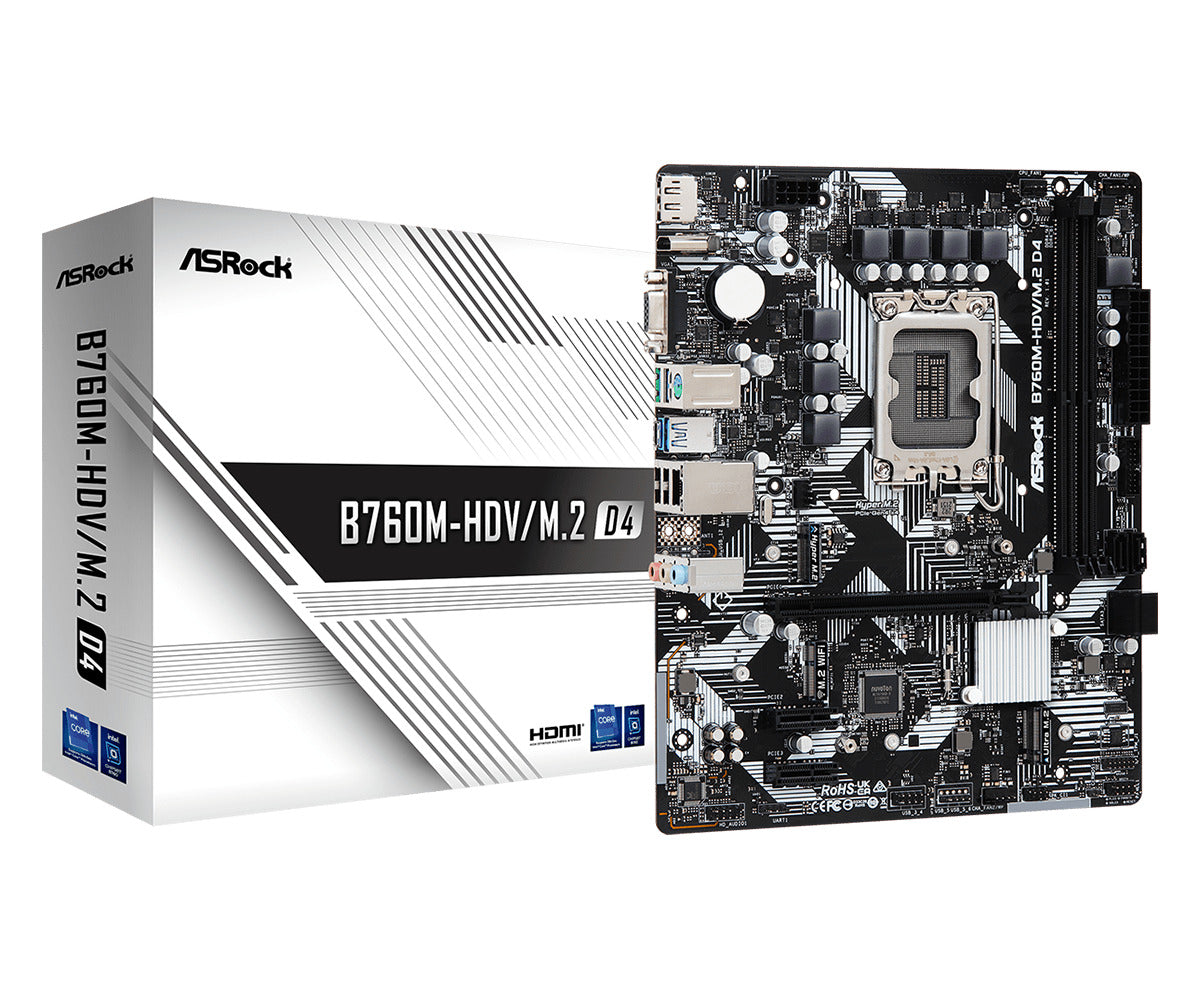

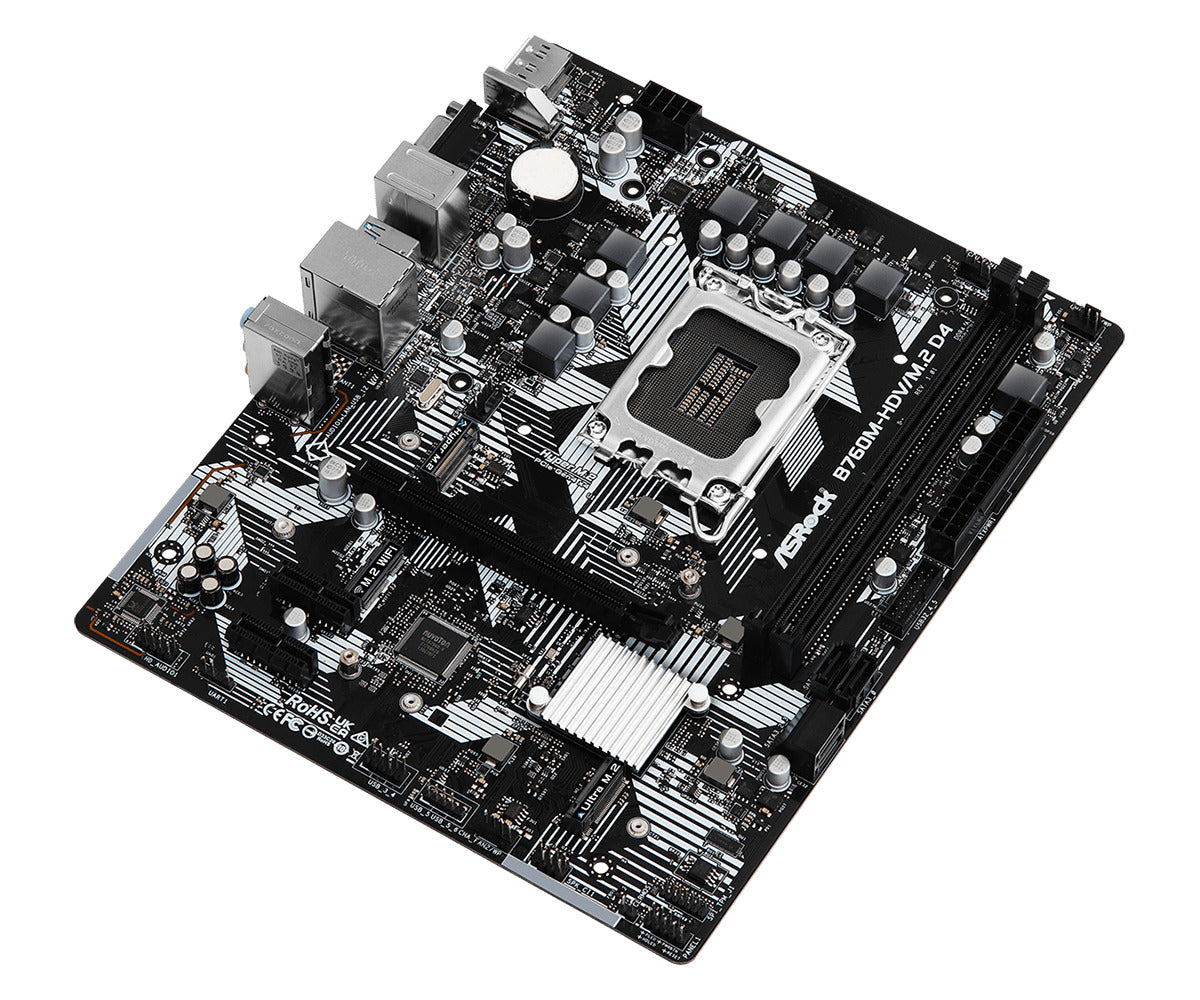

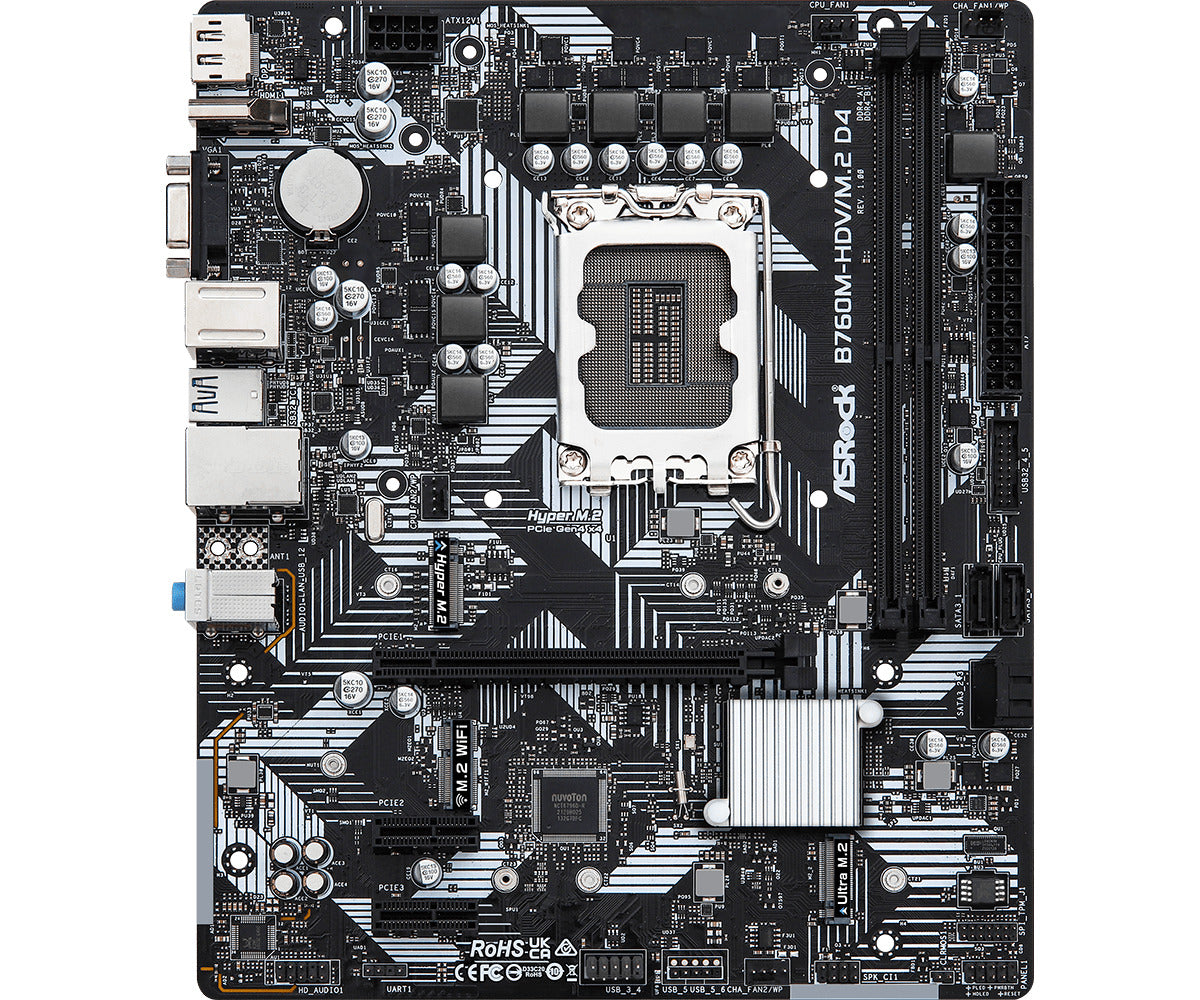

ASRock B760M-HDV/M.2 D4 - motherboard

ASRock B760M-HDV/M.2 D4 - motherboard

€99,00
€99,00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • CPU
  • - Supports 13th Gen & 12th Gen and next gen Intel ® Core™ Processors (LGA1700)
    - Supports Intel ® Hybrid Technology
    - Supports Intel ® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel ® Adaptive Boost Technology (ABT)

  • Chipset
    - Intel® B760
  • random access memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) *
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB *
    - Supports Intel ® Extreme Memory Profiles (XMP) 2.0

    * 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
    1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support

  • graphic
    - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (Compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

    * Intel ® UHD Graphics Built-in visuals and the VGA outputs can only be used when using CPUs with an integrated GPU unit.

  • Audio
    - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Realtek 8111H

  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
    Chipset:
    - 2 x PCIe 3.0 x1 slots (PCIE2 and PCIE3) *
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    * Supports NVMe SSD as boot disk

  • Storage space
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
    Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes *
    - 4 x SATA3 6.0 Gb/s connectors **

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as a boot hard drive

    ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

  • USB
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 5 x USB 3.2 Gen1 Type-A (3 rear, 2 front)
    - 5 x USB 2.0 (2 rear, 3 front)
    * All USB ports support ESD Protection

  • Connection
    - 1 x SPI TPM header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin) *
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) **
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) ***
    - 1 x 24 pin ATX power connector
    - 1 x 8 pin 12V power connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 headers (support 3 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).

    ** CPU_FAN2/WP supports the fan power up to 2A (24W).
    *** CHA_FAN1~2/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

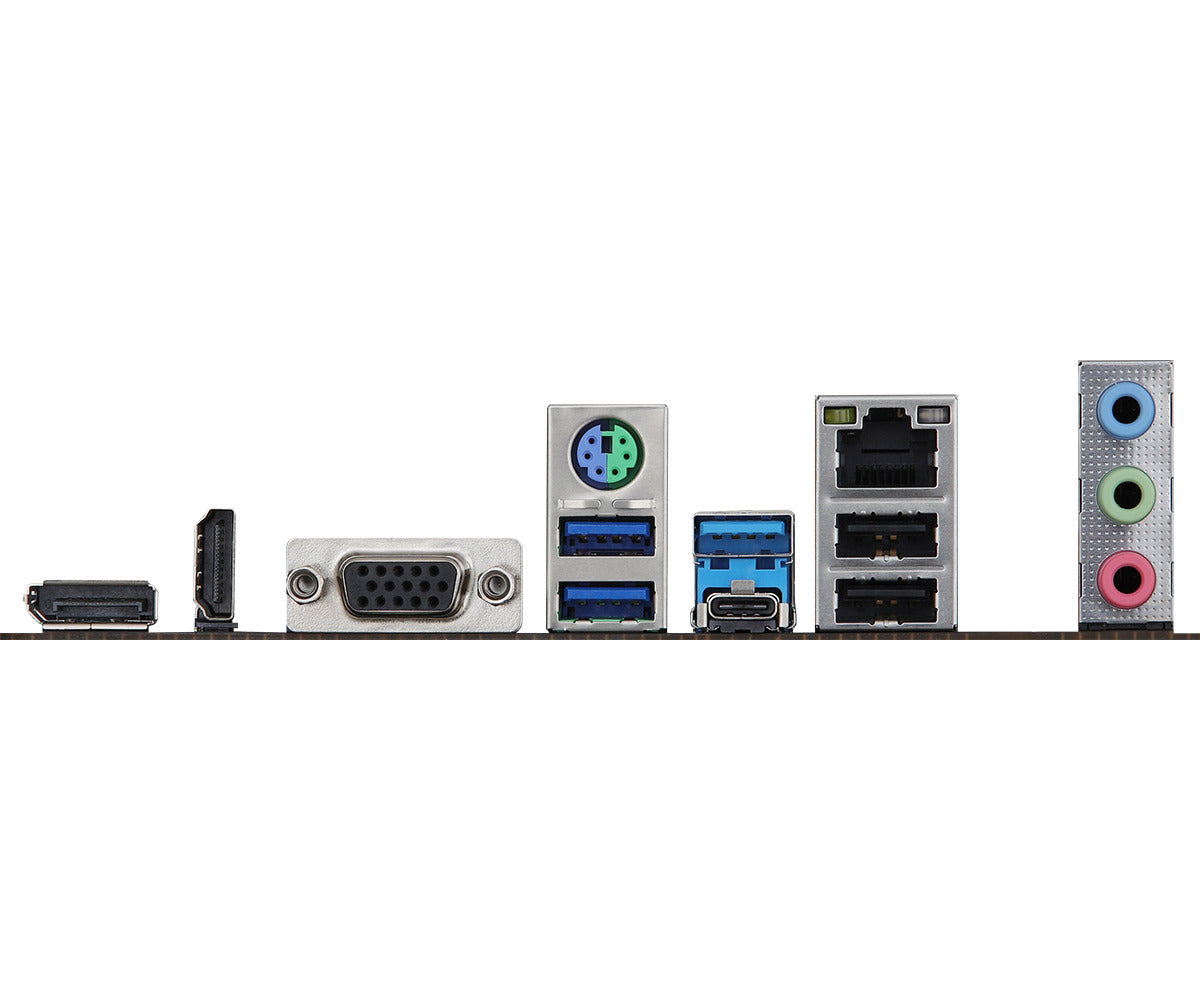

  • cover
    - 2 x antenna mounting points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub port
    - 1 x HDMI port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C port
    - 3 x USB 3.2 Gen1 Type-A ports
    - 2 x USB 2.0 ports
    - 1 x RJ-45 LAN port
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI
    software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock car driver installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    * These tools can be downloaded from the Live Update & APP Shop.

  • Product accessories
    - 1 x User Manual
    - 1 x I/O shield
    - 2 x SATA data cables
    - 3 x Screws for M.2 Sockets

  • Form factor
    - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4cm x 20.1cm

  • operating system
    - Microsoft ® Windows ® 10 64-bit / 11 64-bit
