ASRock H110 Pro BTC+

ASRock H110 Pro BTC+

€129,00
€129,00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Unique features
    ASRock Super Alloy
    - Sapphire Black PCB
    - High density glass fabric PCB
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 7th and 6th Generation Intel ® Core™ i7 / i5 / i3 / Pentium ® / Celeron ® Processors (Socket 1151)
    - Supports CPU up to 91W
    - Digi Power design
    - 8 power phase design
    - Supports Intel ® Turbo Boost 2.0 Technology
  • Chipset
    - Intel® H110
  • random access memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM slots
    - Supports DDR4 2400 / 2133 non-ECC, un-buffered memory *
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 32GB *
    - Supports Intel ® Extreme Memory Profiles (XMP) 2.0
    - 15μ Gold Contact in DIMM slots
    * 7th Gen Intel ® CPU supports DDR4 up to 2400; 6th Gen Intel ® CPU supports DDR4 up to 2133.

    ** Due to limitations in the operating system, it is possible that Windows ® 32-bit OS can reserve less than 4 GB of RAM for the system. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 64Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 5.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, DRAM, PCH 1.05V Voltage multi-adjustment
  • graphic
    - Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ® InTru™ 3D, Intel ® Clear Video HD Technology, Intel ® Insider™, Intel ® HD Graphics
    - Gen9 LP, DX11.3, DX12
    - HWA Encode/Decode: VP8, HEVC 8b, VP9, ​​HEVC 10b (For 7th Gen Intel ® CPU)
    - HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, ​​HEVC 10b (For 6th Gen Intel ® CPU)
    - Max. shared memory 1024MB **
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports Accelerated Media Codecs: HEVC, VP8, VP9
    - Supports HDCP with DVI-D port
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D port

    * Intel ® HD Graphics Built-in Visuals and the VGA outputs can only be used when using CPUs with an integrated GPU unit.

    ** The size of maximum shared memory may vary from different operating systems.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *
    - Supports Surge Protection
    - ELNA audio caps

    * To configure 7.1 CH HD Audio, it is necessary to use an HD front panel module and enable the multi-channel audio feature in the sound driver.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel ® I219V
    - Supports Wake-On-LAN (support only with the black PCIe slots)
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode) *
    - 12 x PCI Express 2.0 x1 slots

    * Supports NVMe SSD as boot disk
  • Storage space
    - 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug *
    - 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s modules

    * If the M2_1 port is occupied by a SATA M.2 device, the SATA3_0 port will be disabled.
  • Connection
    - 1 x Print Port Header
    - 1 x COM port header
    - 1 x TPM header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin) *
    - 2 x Chassis Fan Connectors (4-pin)
    - 1 x 24 pin ATX power connector
    - 1 x 8 pin 12V power connector
    - 2 x PCIe Power Connectors
    - 1 x SATA Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)
    - 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)

    * The CPU fan connector supports CPU fans with a maximum output of 1 amp (12 watts).

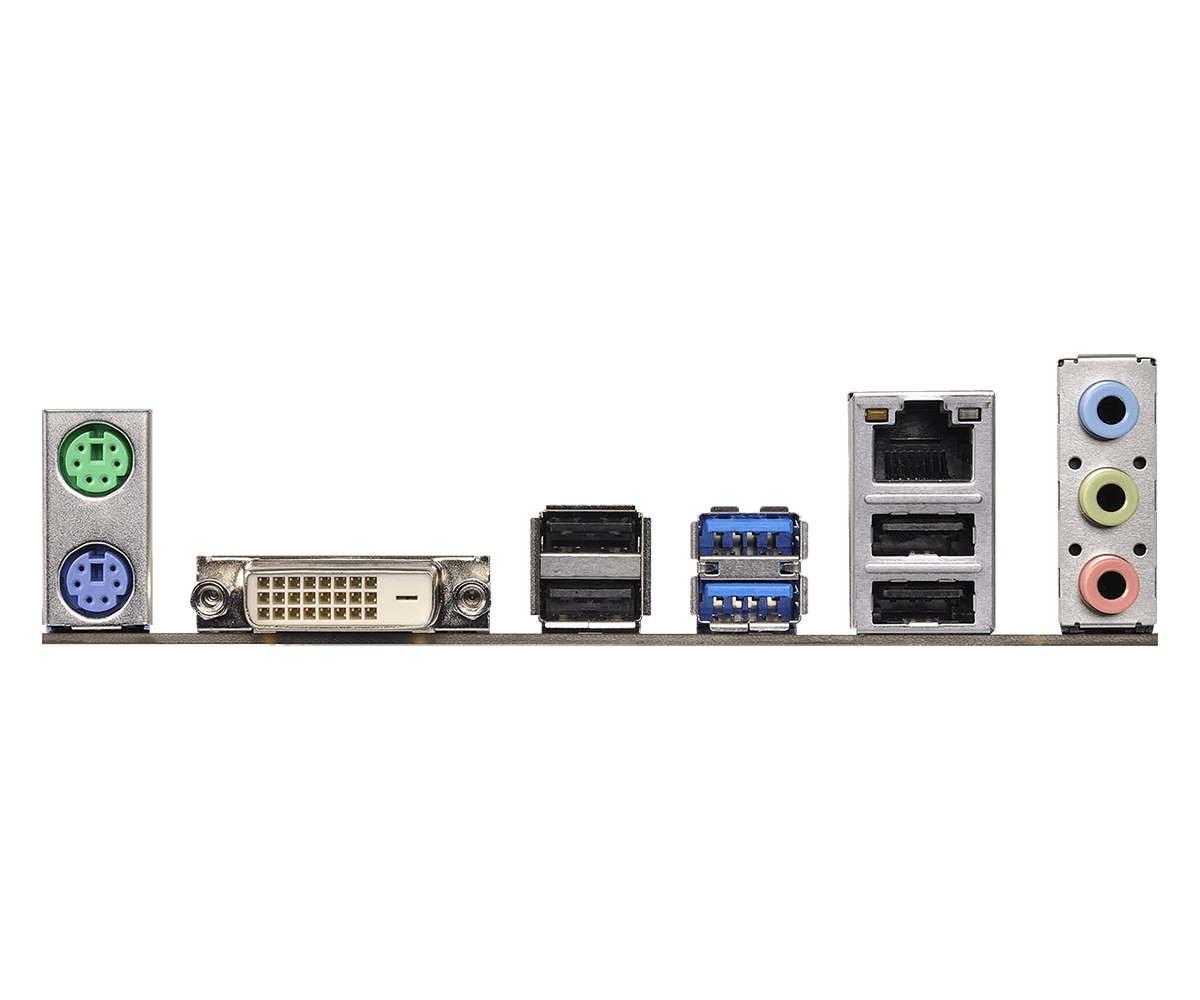

  • cover
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 keyboard port
    - 1 x DVI-D port
    - 4 x USB 2.0 ports (supports ESD protection)
    - 2 x USB 3.1 Gen1 ports (supports ESD protection)
    - 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    software
    - ASRock APP Charger
    - ASRock XFast LAN
    UEFI
    - ASRock Instant Flash

    * These tools can be downloaded from the Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Product accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA data cables
    - 1 x Screw for M.2 Socket
  • Hardware monitoring
    - CPU, chassis temperature sensing
    - CPU, chassis fan speedometer
    - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU, chassis fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form factor
    - ATX Form Factor: 12.0-in x 8.2-in, 30.5cm x 20.8cm
    - Solid capacitor design
  • operating system
    - Microsoft ® Windows ® 10 64-bit (For 7th Gen Intel ® CPU)
    - Microsoft ® Windows ® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel ® CPU)

    * To install Windows ® 7, a modified installation media with the xHCI driver package in the ISO files is required. For more information, please refer to the user manual
  • Certifications
    - FCC, CE
