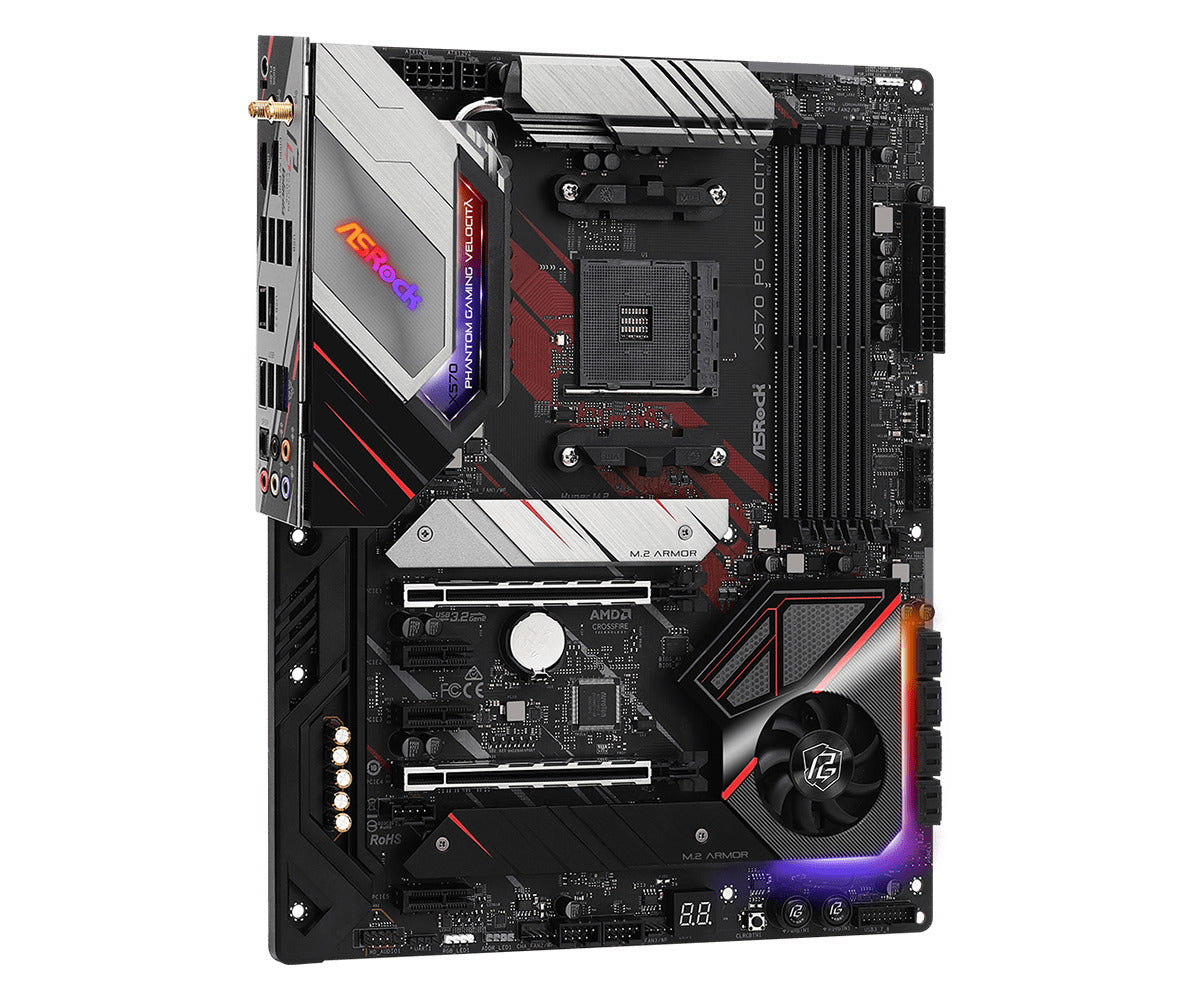

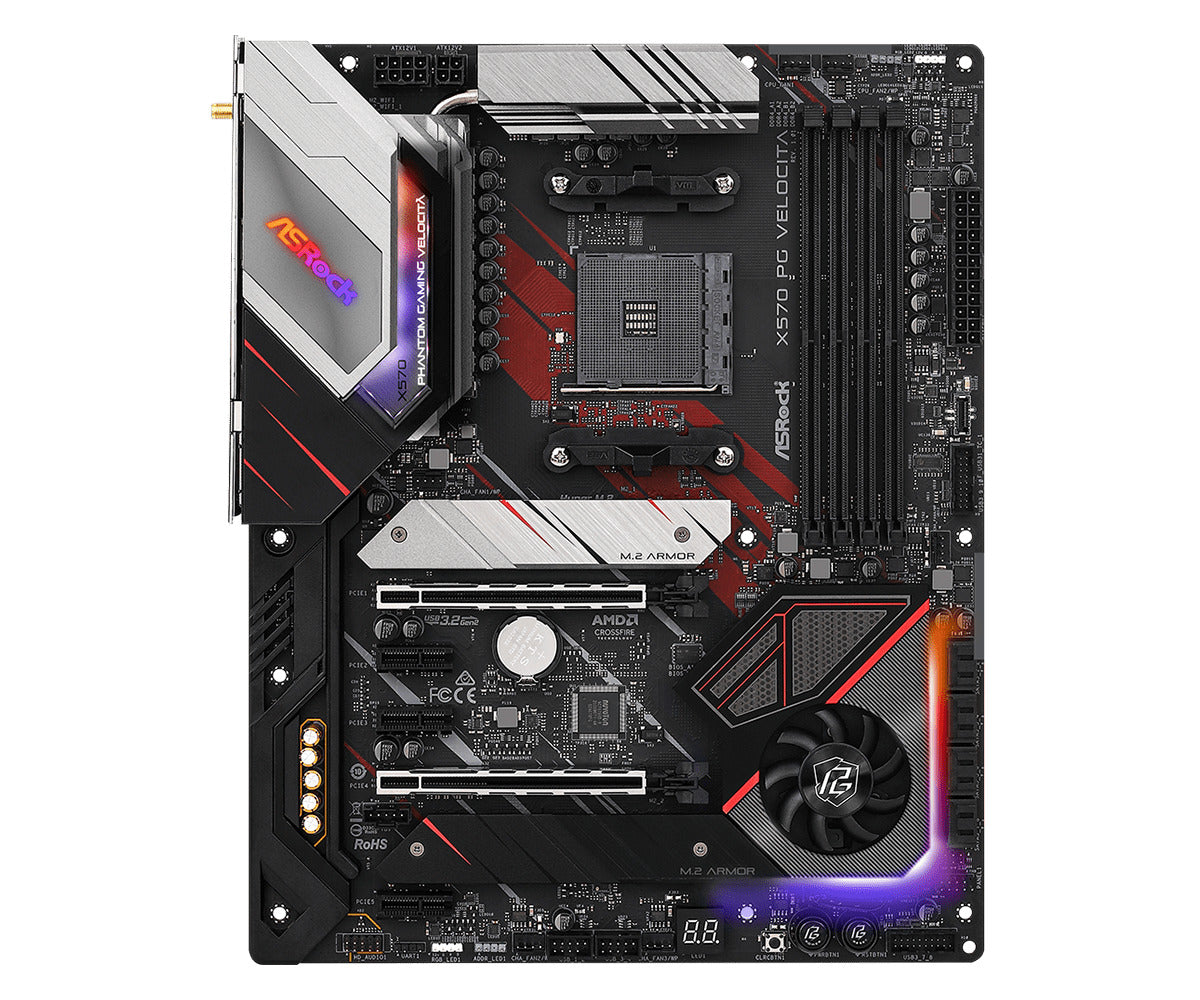

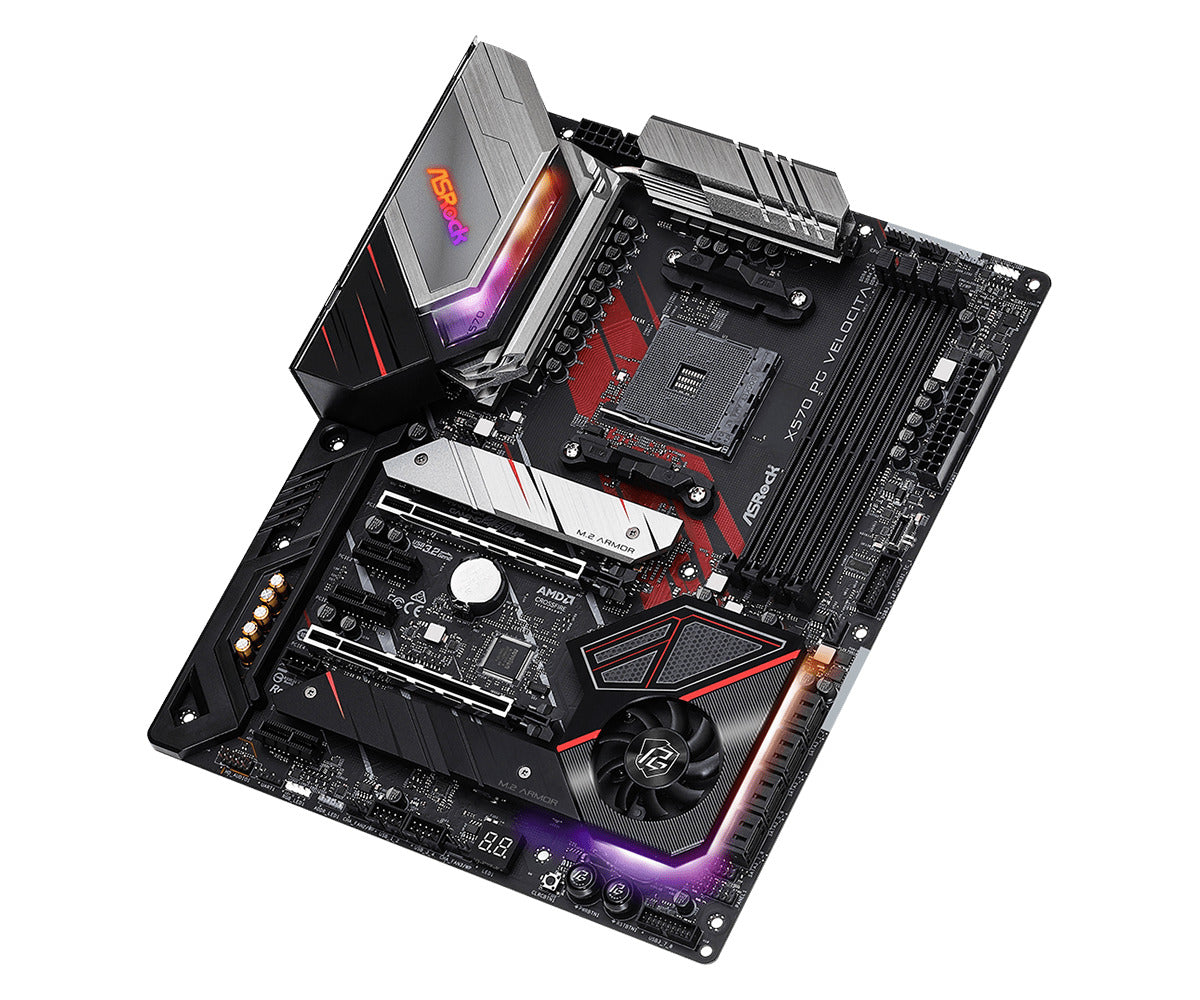

ASRock X570 PG Velocita - motherboard

power
- Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)
Memory
- 15μ Gold Contact in DIMM slots
VGA card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Killer 2.5G LAN
Cooling
- XXL aluminum alloy heat sink
- Heat pipe design
Audio
- Nahimic Audio

ASRock USB 3.2 Gen2
- ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-A port (10Gb/s)
- ASRock USB 3.2 Gen2 Type-C port (10 Gb/s)
ASRock Super Alloy
- XXL aluminum alloy heat sink
- Premium 60A power choke
- 50A Dr.MOS
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High density glass fabric PCB
- 2oz Copper PCB
Killer 2.5G LAN
Killer 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Digi Power design
- 14 power phase design

- AMD X570

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
- AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 /
2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
- AMD Ryzen series APUs (Cezanne) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
- AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
- AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory *

- Max. capacity of system memory: 128GB **
- Supports Extreme Memory Profiles (XMP) memory modules
- 15μ Gold Contact in DIMM slots

- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU *
- DirectX 12, Pixel Shader 5.0
- By default shared storage is 2GB. A maximum of 16 GB of shared storage is possible. **
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz ***
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports ****
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 ports
- Supports Microsoft ^® PlayReady

- 7.1 CH HD Audio with content protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure power in
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
- Supports Killer LAN Software
- Supports Killer DoubleShotTM Pro
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

- Killer AX1650x 802.11ax WiFi modules
- Supports IEEE 802.11a/b/g/n/ax
- Supports dual band (2.4/5 GHz)
- Supports Killer WiFi6 802.11ax (2.4Gbps)
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.1 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShotTM Pro

AMD Ryzen series CPUs (Vermeer, Matisse)
- 2 x PCI Express 4.0 x16 slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) *
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) *
AMD Ryzen series APUs (Picasso)
- 2 x PCI Express 3.0 x16 slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4)) *

- 3 x PCI Express 4.0 x1 slots
- Supports AMD Quad CrossFireX™ ​​and CrossFireX™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

- 8 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso) *
- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso) *

- 1 x Power LED and Speaker Header
- 2 x RGB LED headers *
- 2 x addressable LED headers **
- 1 x CPU fan connector (4-pin) ***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) ****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) *****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (supports ESD protection)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports) (supports ESD protection)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
- 1 x Clear CMOS button

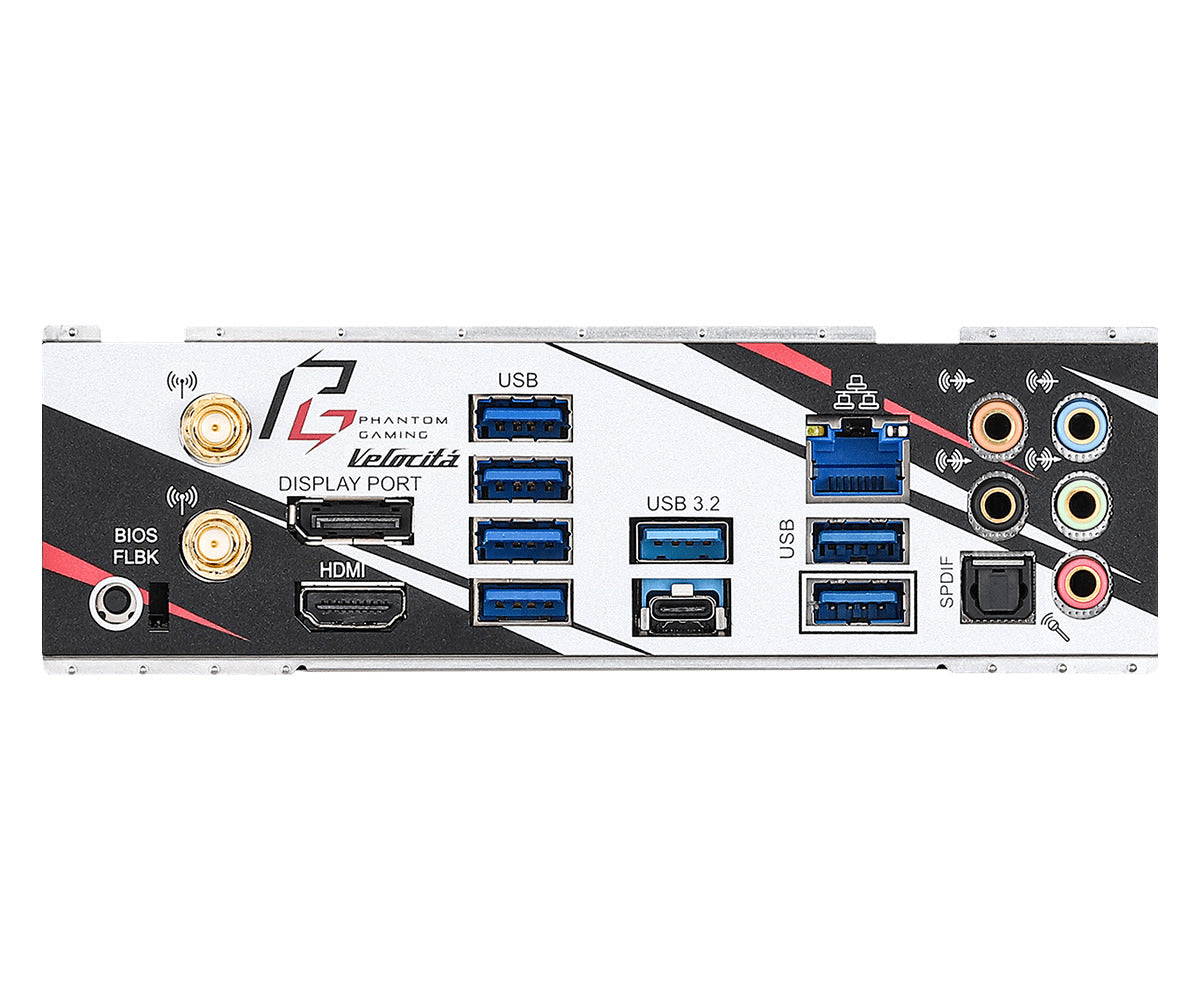

- 2 x antenna ports
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A port (10 Gb/s) (Supports ESD Protection) *
- 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (Supports ESD Protection) *
- 6 x USB 3.2 Gen1 ports (supports ESD protection) *
- 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button with LED
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

software
- ASRock Motherboard Utility (Phantom Gaming Setting)
- ASRock Killer LAN Software
- ASRock Polychrome SYNC
- ASRock Key Master UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

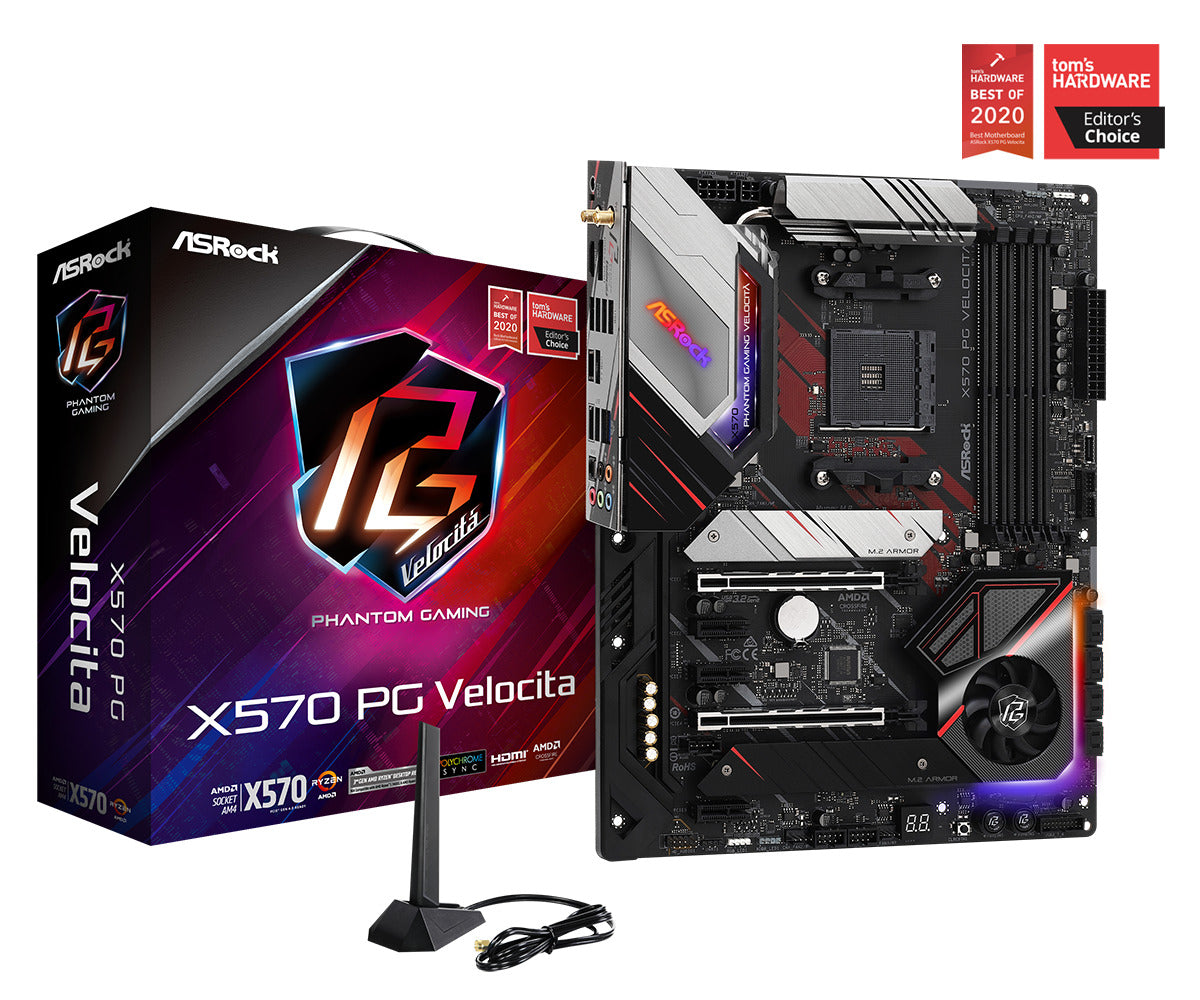

- Quick Installation Guide, Support CD
- 4 x SATA data cables
- 1 x ASRock WiFi 2.4/5GHz antenna
- 2 x Screws for M.2 Sockets
- 2 x standoffs for M.2 sockets

- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed ​​Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP

- ATX Form Factor: 12.0-in x 9.6-in, 30.5cm x 24.4cm
- 2oz Copper PCB

- Microsoft ^® Windows ^® 10 64-bit / 11 64-bit

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
