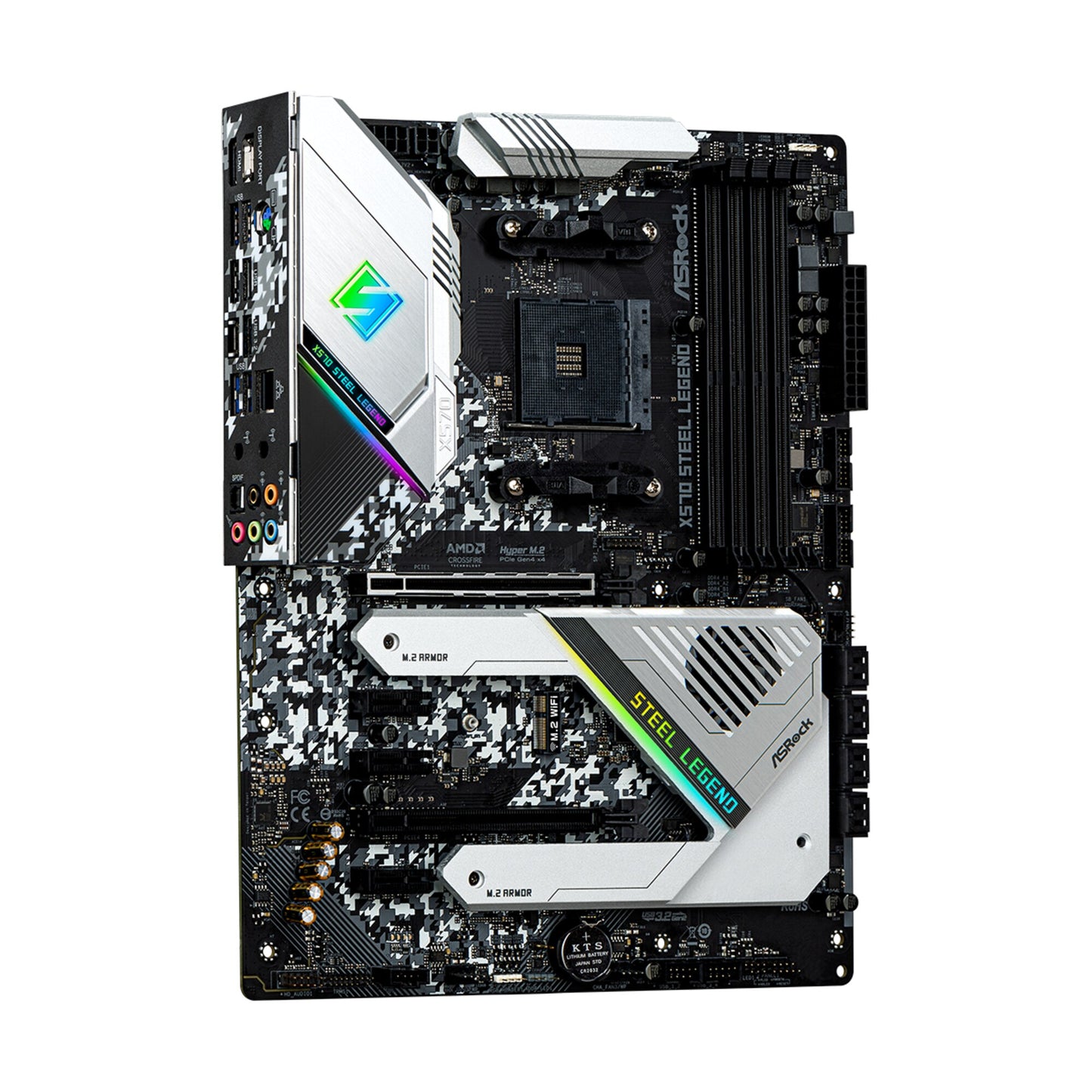

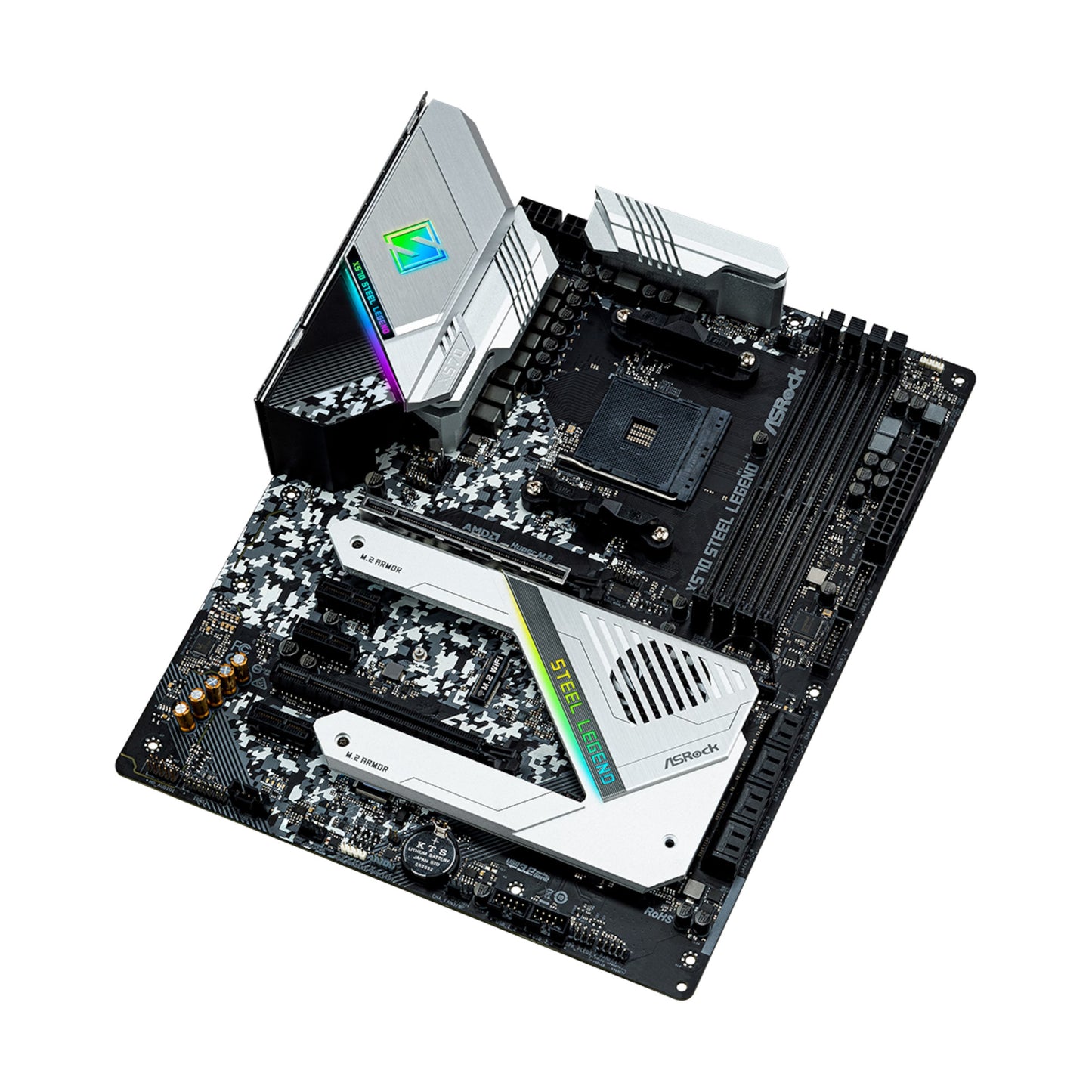

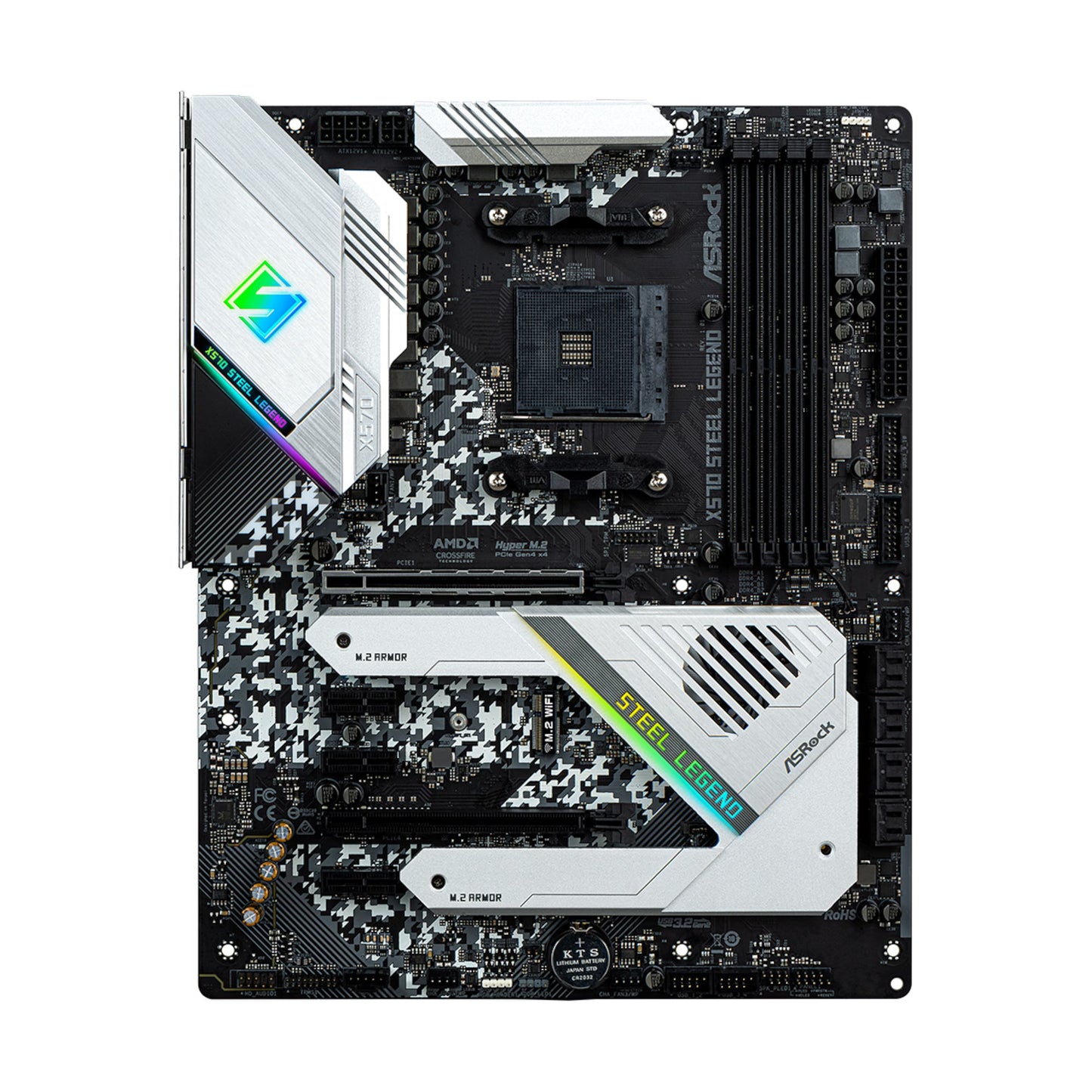

ASRock X570 Steel Legend - Mainboard

ATX Mainboard mit Sockel AMD AM4 für AMD Ryzen 2000/3000 Prozessoren

AMD X570

128 GB maximaler Arbeitsspeicher

4x RAM-Slots (Steckplätze für Arbeitsspeicher)

AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory

AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory

AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory

Max. capacity of system memory: 128GB

15μ Gold Contact in DIMM Slots

Radeon Vega Grafik (Ryzen CPU) Grafikchipsatz

AMD Ryzen series CPUs (Matisse)

2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*

AMD Ryzen series CPUs (Pinnacle Ridge)

2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*

AMD Ryzen series CPUs (Picasso)

2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*

3 x PCI Express 4.0 x1 Slots

Supports AMD Quad CrossFireX™ and CrossFireX™

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

15μ Gold Contact in VGA PCIe Slot (PCIE1)

^{*Supports NVMe SSD as boot disks}

Interne Anschlüsse:

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x AMD Fan LED Header*

1 x RGB LED Header**

1 x Addressable LED Header***

1 x CPU Fan Connector (4-pin)****

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x 4 pin 12V Power Connector

1 x Front Panel Audio Connector (15μ Gold Audio Connector)

1 x AMD LED Fan USB Header

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

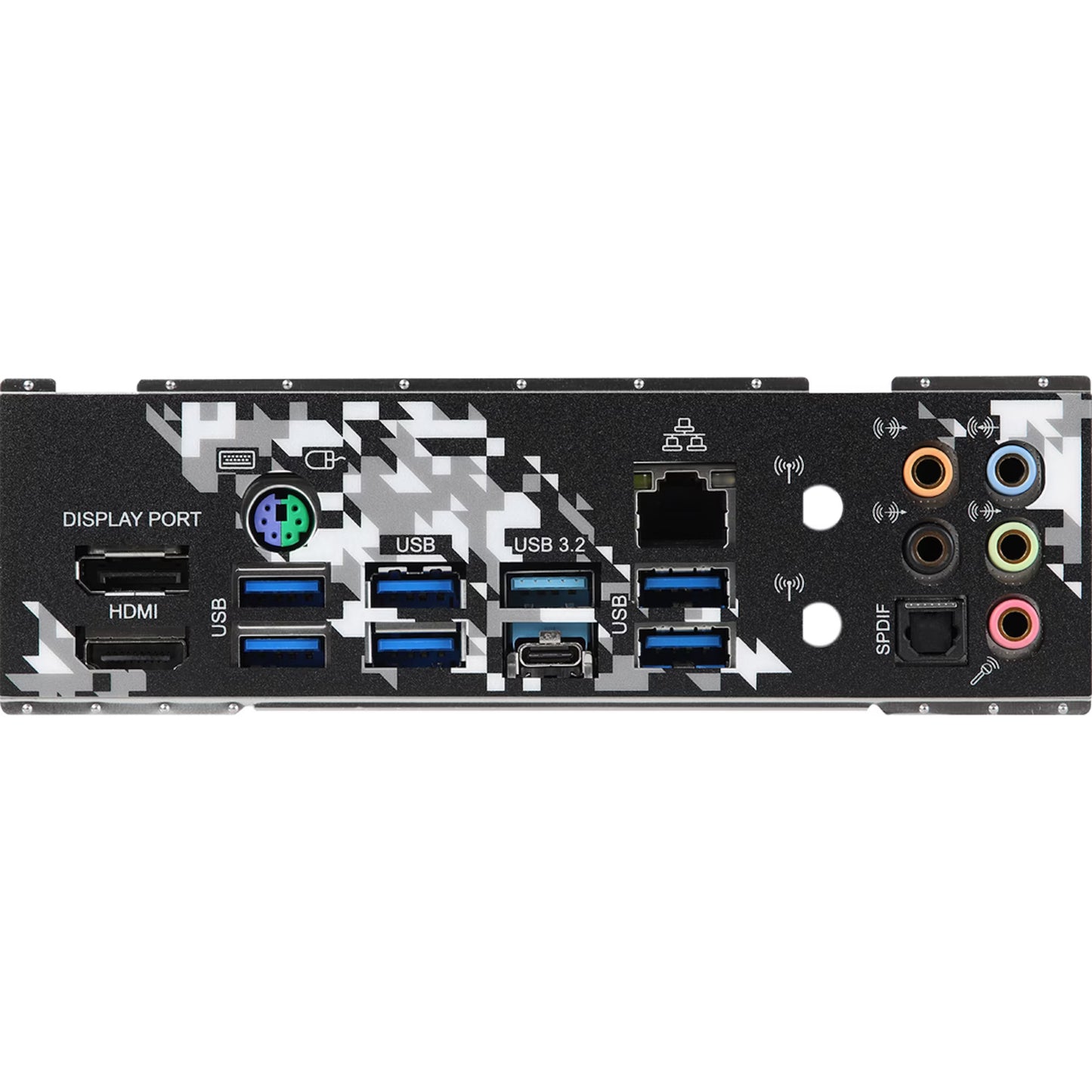

Externe Anschlüsse:

2 x Antenna Ports (on I/O Panel Shield)

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

1 x DisplayPort 1.2

1 x Optical SPDIF Out Port

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

1x Gigabit-LAN

Realtek ALC1220, 8-Kanal Audio

Microsoft® Windows® 10 64-bit

LED Beleuchtung RGB-Anschluß CrossFireX Optical S/PDIF-Out Anschluß

ASRock USB 3.2 Gen2

- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

- XXL Aluminum Alloy Heatsink

- Premium 60A Power Choke

- 50A Dr.MOS

- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)

- Combo Caps (Nichicon 12K Black Caps)

- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

- I/O Armor

- Matte Black PCB

- High Density Glass Fabric PCB

- 2oz Copper PCB

ASRock Steel Slot Gen4

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)

ASRock Ultra USB Power

ASRock POST Status Checker (PSC)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

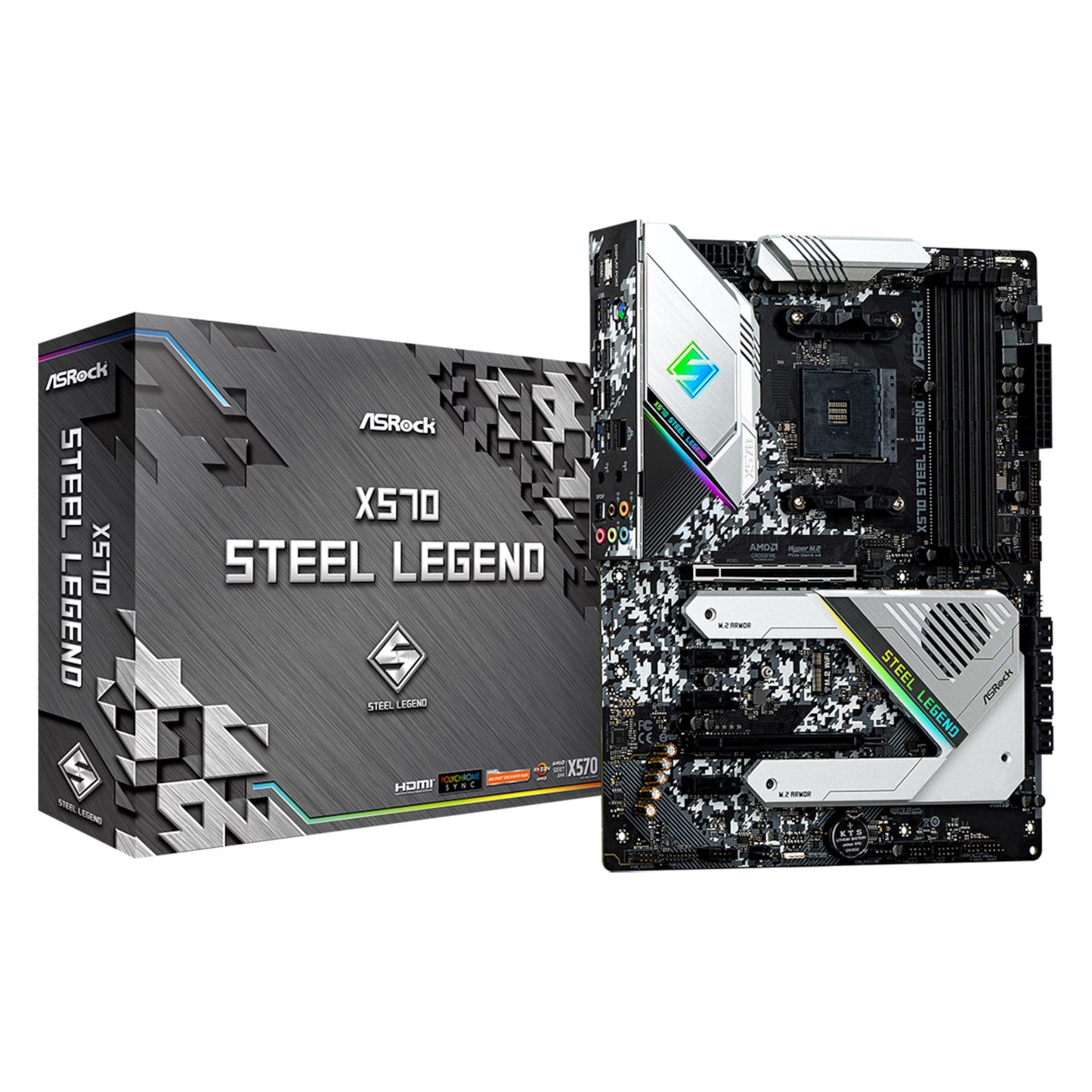

Benutzerhandbuch, Treiber-CD, Slotblende, SATA-Anschlusskabel
