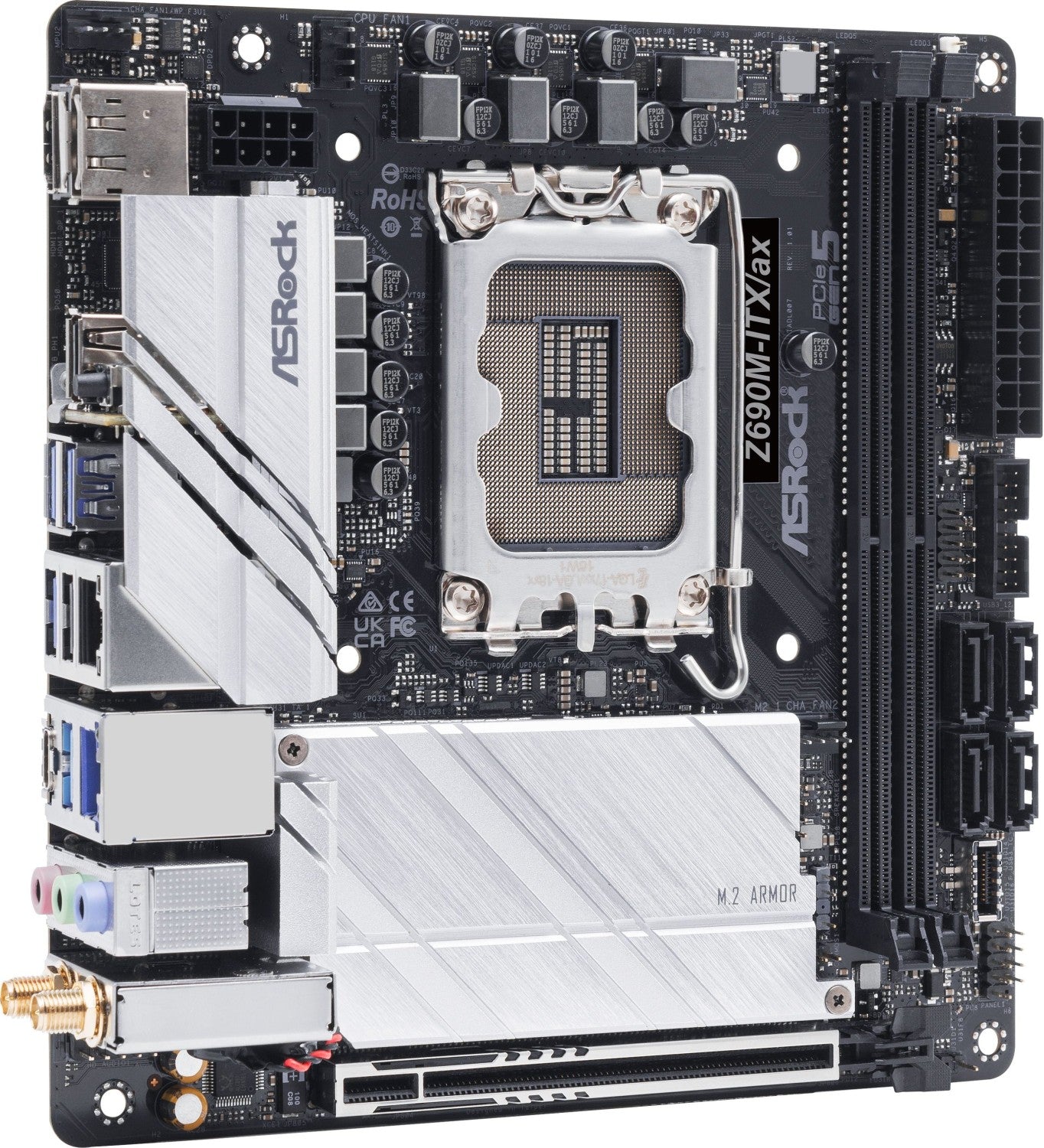

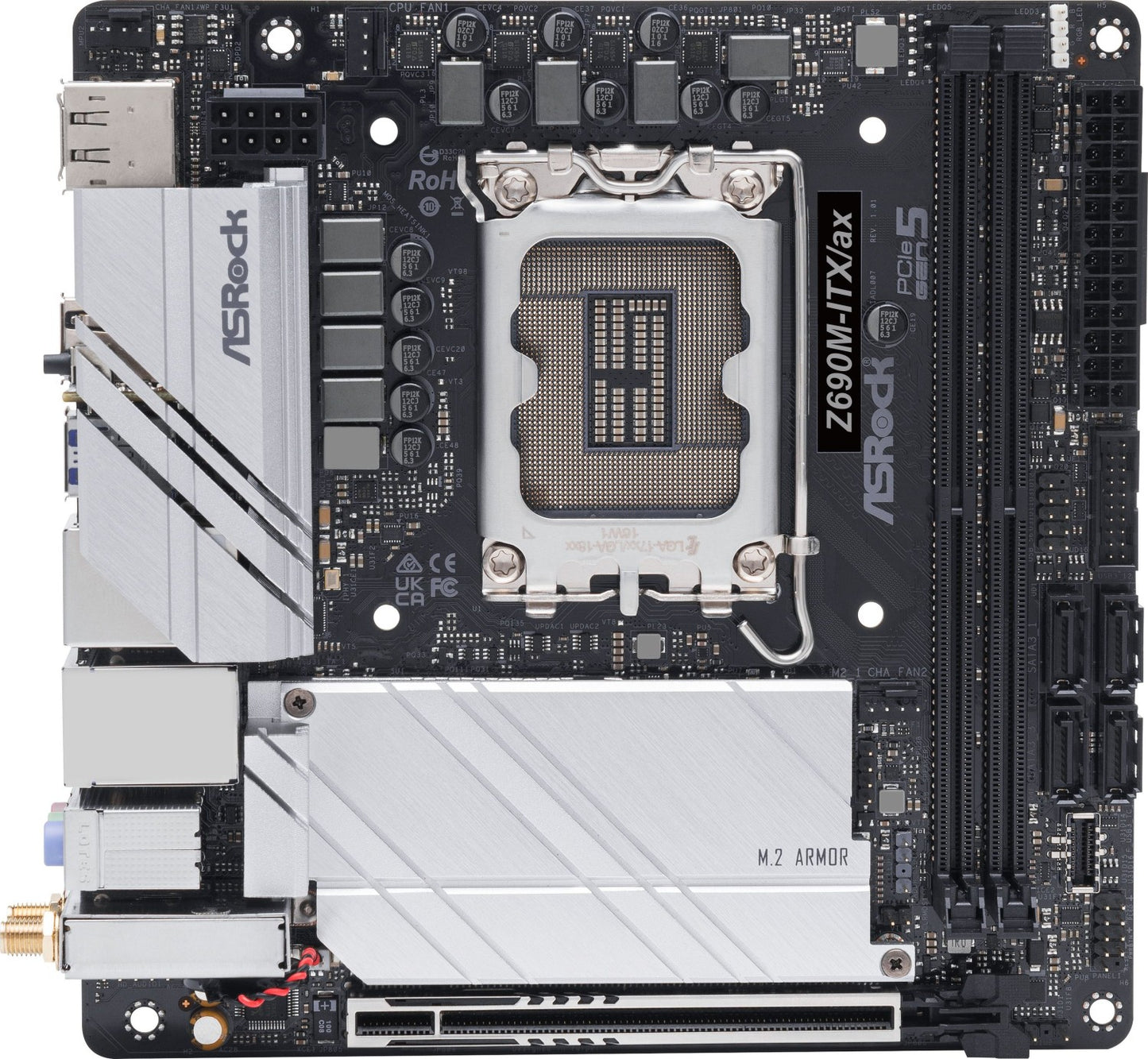

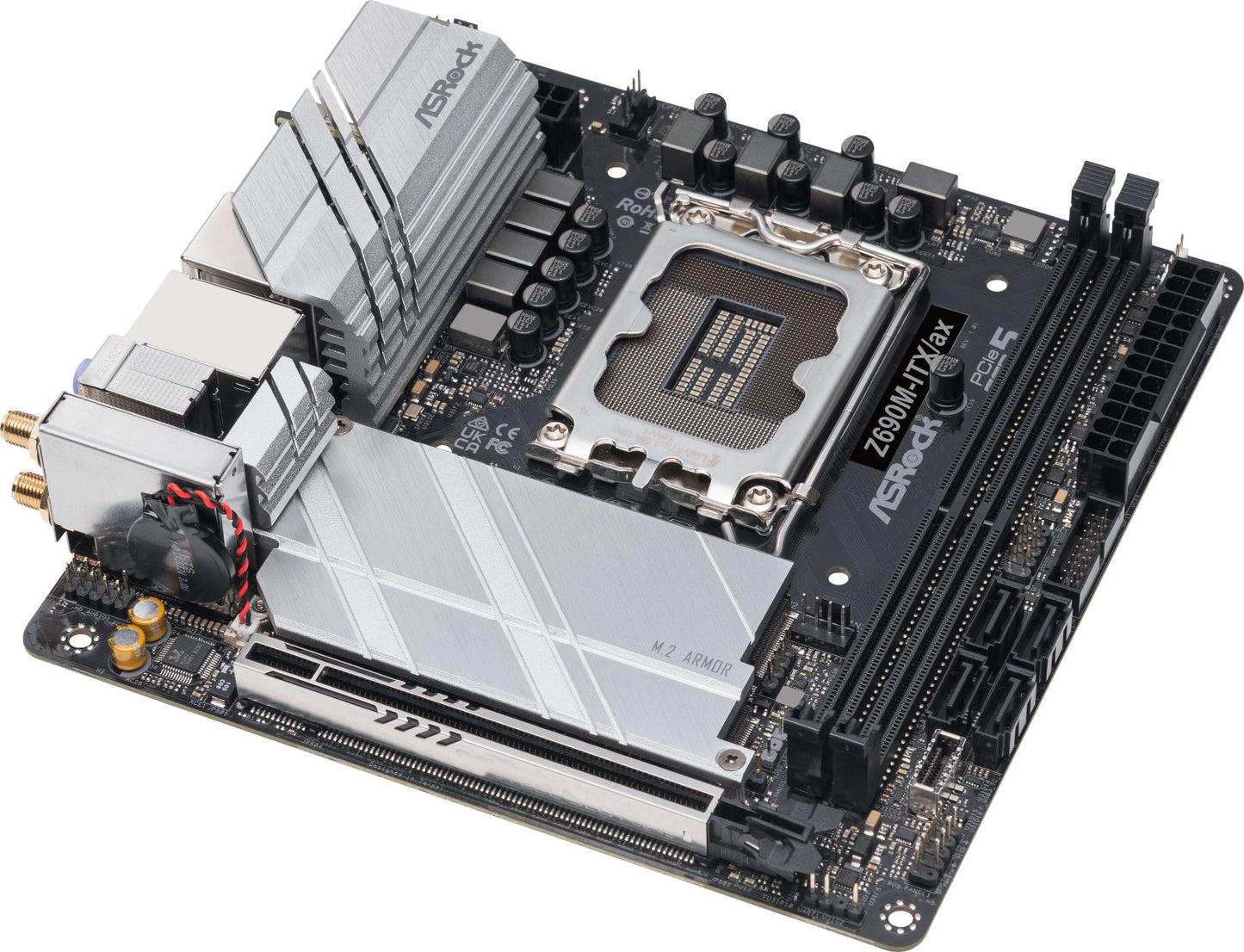

ASRock Z690 M-ITX/ax
ASRock Z690 M-ITX/ax
Couldn't load pickup availability
- Mini ITX
- Intel 1700
- Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
- 1x PCIe 5.0 x16, 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E -Key (PCIe/Intel CNVi, 2230, occupied with WiFi+BT module)

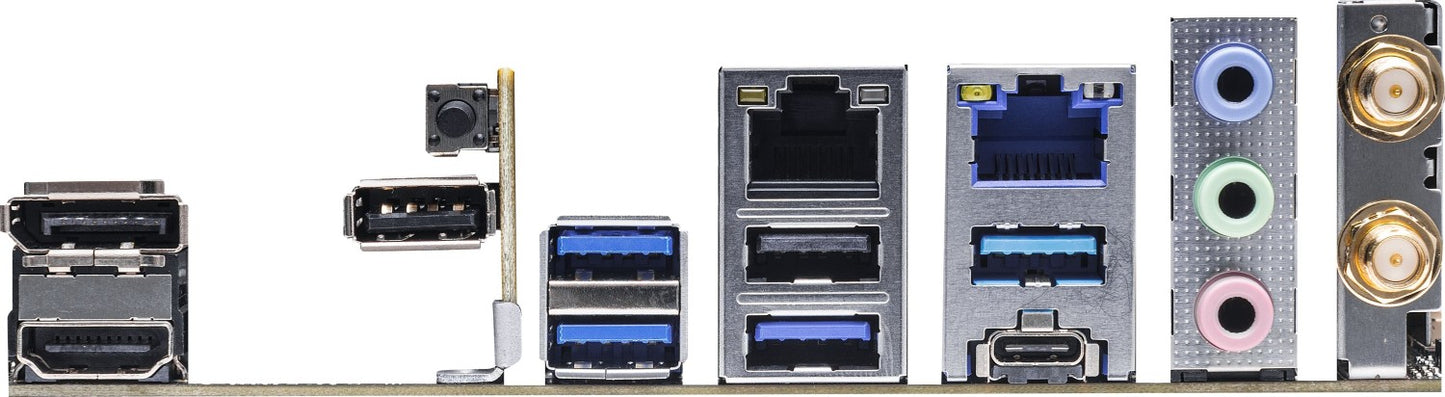

- 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s, Z690), 4x USB-A 3.1 (10Gb/s, Z690), 2x USB-A 2.0 (480Mb /s), 1x 2.5GBase-T (Realtek RTL8125BG), 1x Gb LAN (Intel I219-V), 3x jack, 2x antenna connection (RP-SMA)
- 1x USB-C 3.2 Key-A header (20Gb/s, Z690), 1x USB 3.0 header (5Gb/s, 2x USB 3.0, Z690), 1x USB 2.0 header (480Mb/s, 2x USB 2.0) , 4x SATA 6Gb/s (Z690)
- 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 1x fan/pump 4-pin
- 1x 4-pin RGB (+12V/G/R/B, max. 3A), 1x 3-pin ARGB (+5V/DATA/GND, max. 3A)
- USB BIOS flashback (external)
- 7.1 (Realtek ALC897)
- Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
- 1x 24-pin ATX, 1x 8-pin EPS12V
- 8 virtual phases (7+1), 8 real phases (7+1), PWM controller: RT3628AE (max. 9 phases)
- 6x SiC654
- 1x SiC654
