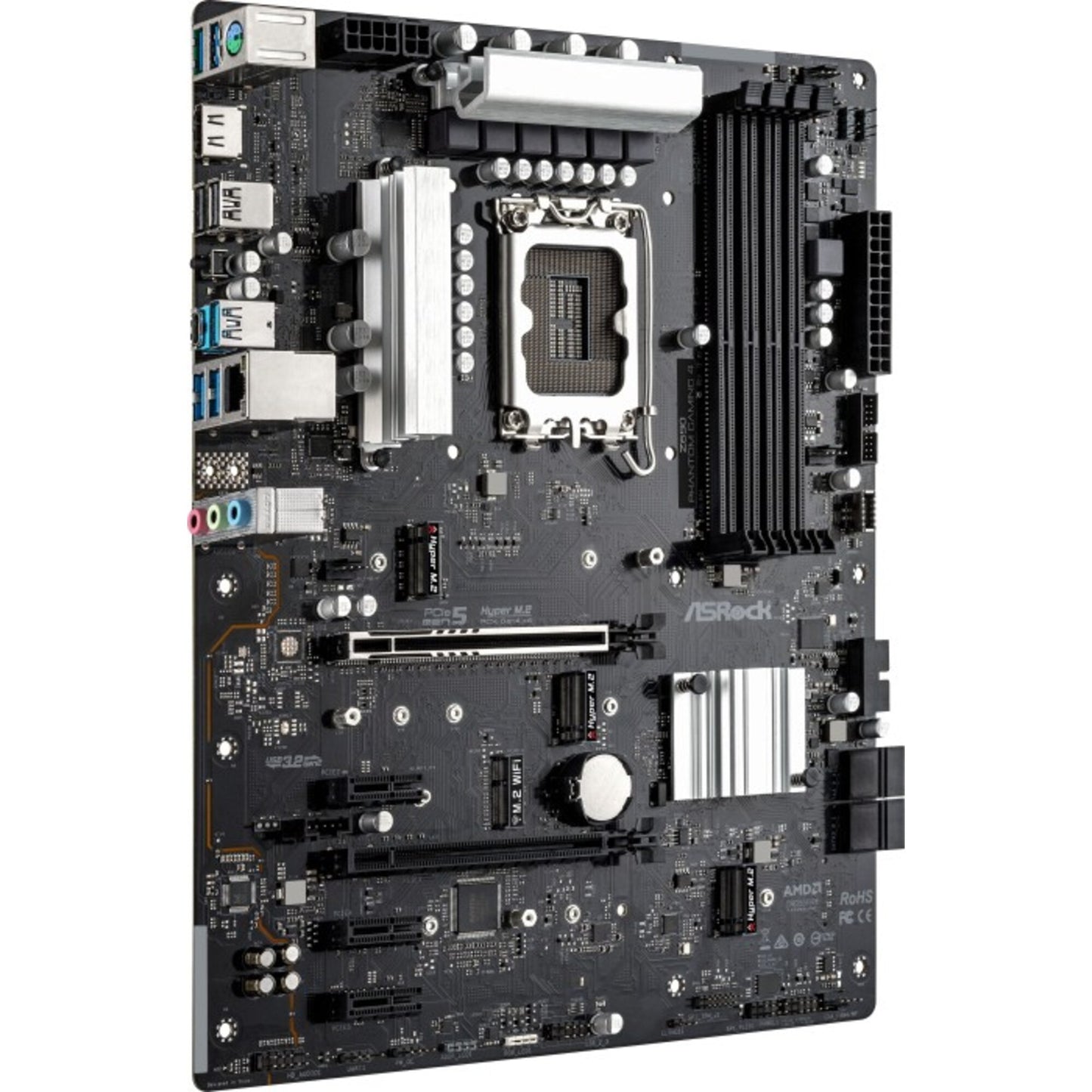

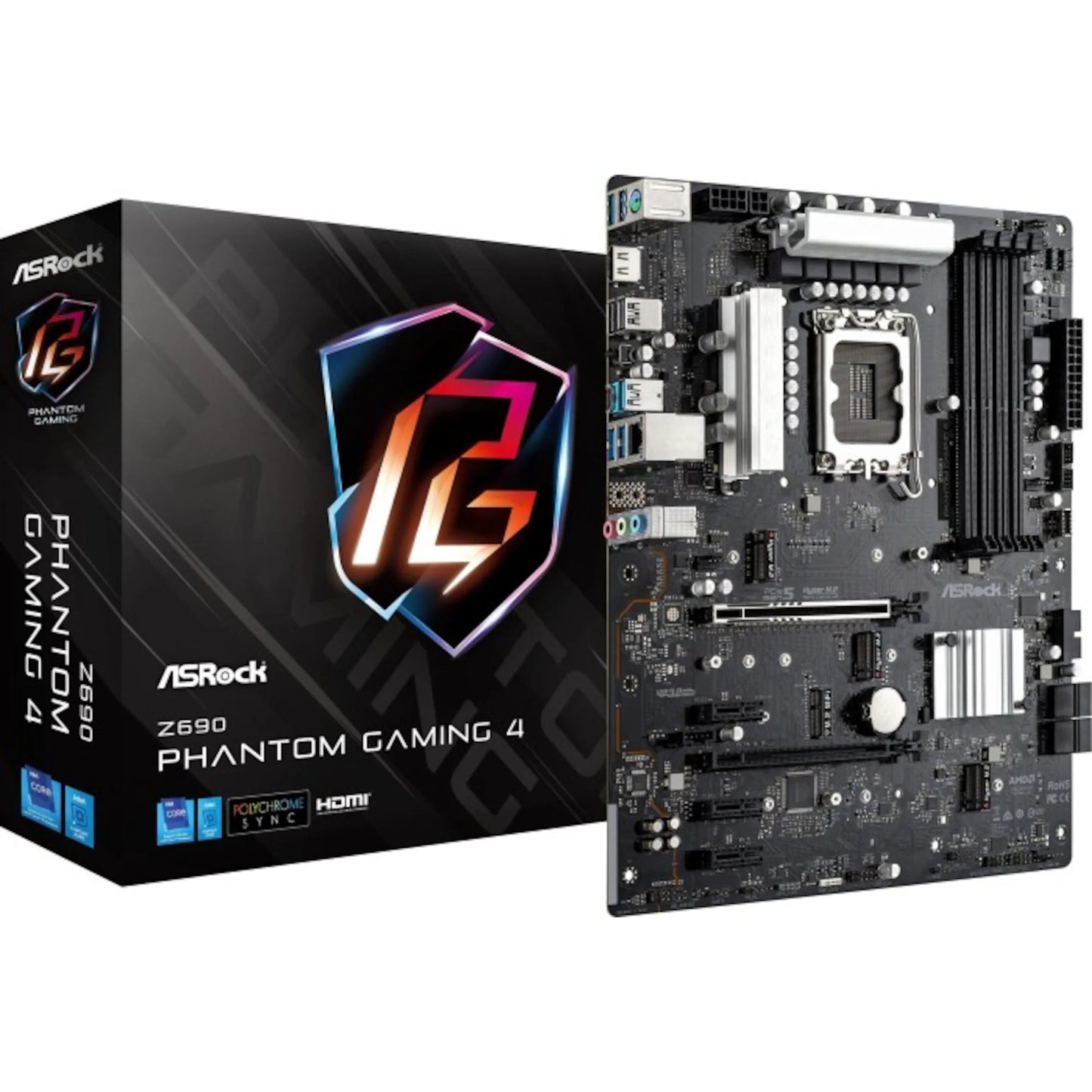

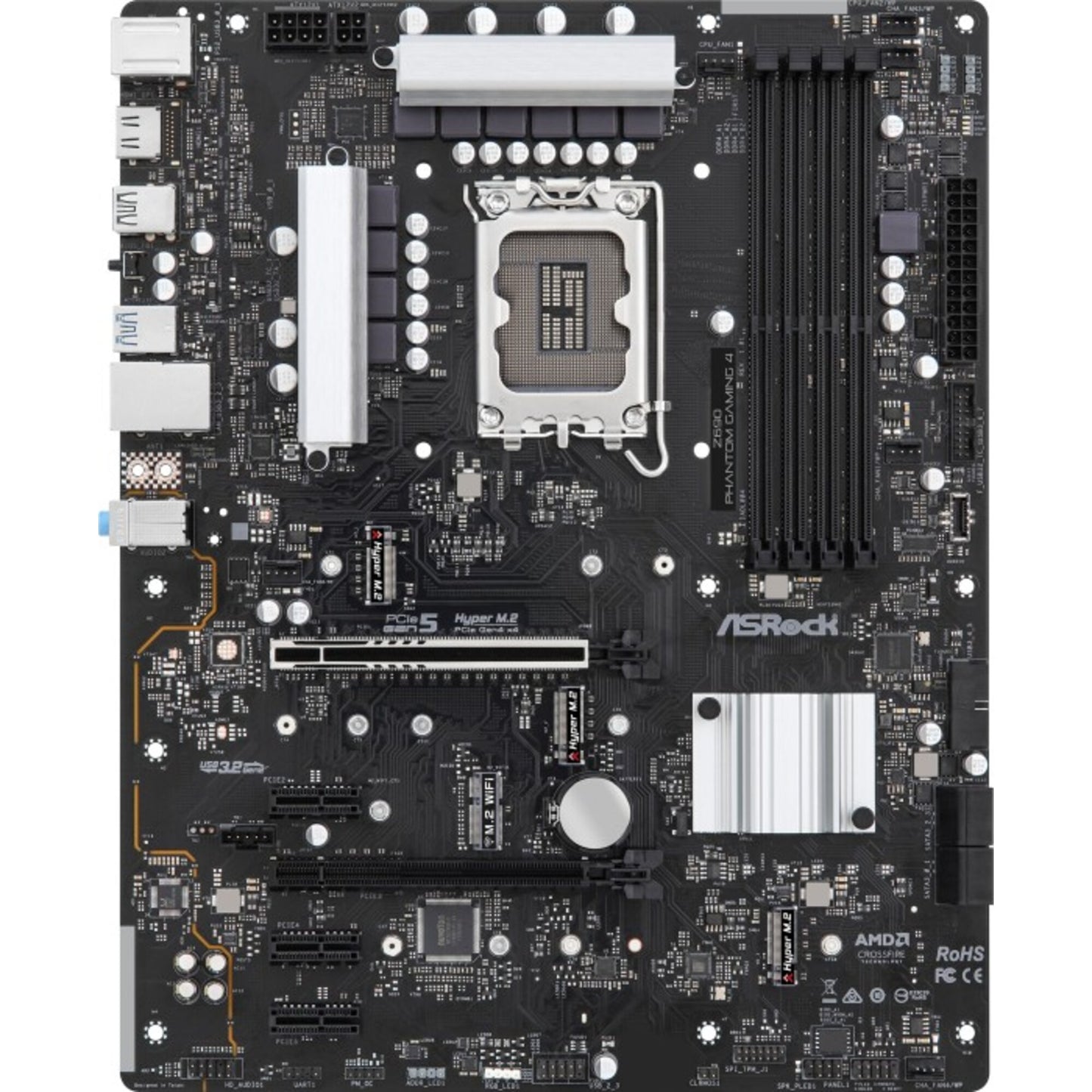

ASRock Z690 Phantom Gaming 4 - motherboard

ATX motherboard with socket Intel 1700 for Intel Core 12th generation

Intel Z690

128 GB maximum RAM up to 5000MHz maximum clock speed

4x RAM slots (slots for working memory)

Memory Type: DDR4

Dual channel architecture

Intel HD Graphics graphics chipset

3x PCIe 3.0 x1

1x PCIe 4.0 x16

1x PCIe 5.0 x16

Internal connections:

- 1 x SPI TPM header

- 1 x Power LED and Speaker Header

- 1 x RGB LED header*

- 3 x addressable LED headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control)****

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control)*****

- 1 x 24 pin ATX power connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)

- 2 x USB 3.2 Gen1 headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

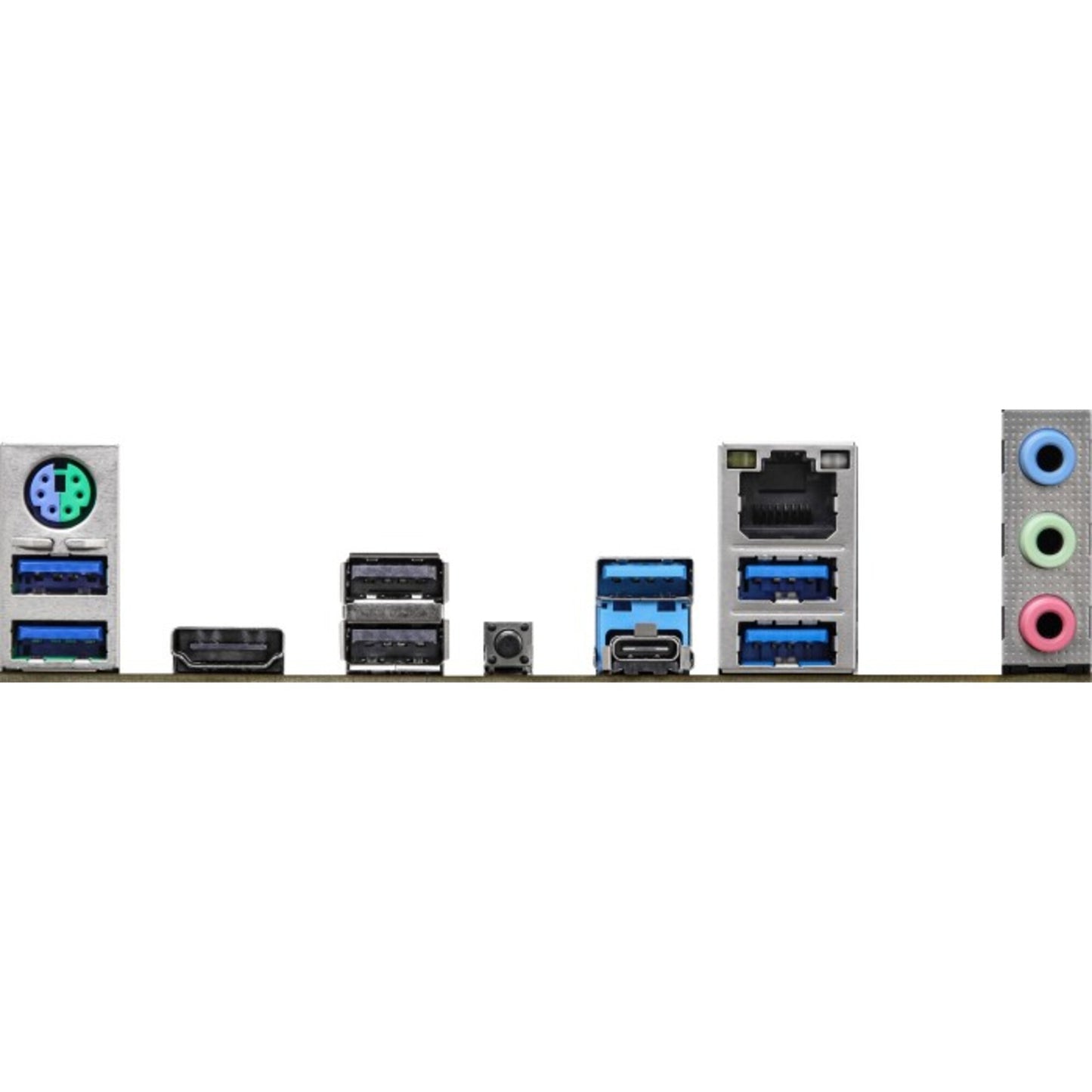

External connections:

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 ports (supports ESD protection)

- 2 x USB 2.0 ports (supports ESD protection)

- 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)

- 1 x BIOS flashback button

- HD Audio Jacks: Line in / Front Speaker / Microphone

1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Giga PHY Intel® I219V

Realtek ALC897,

Microsoft® Windows® 10/11 64-bit

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA data cables

- 4 x Screws for M.2 Sockets
