ASRock

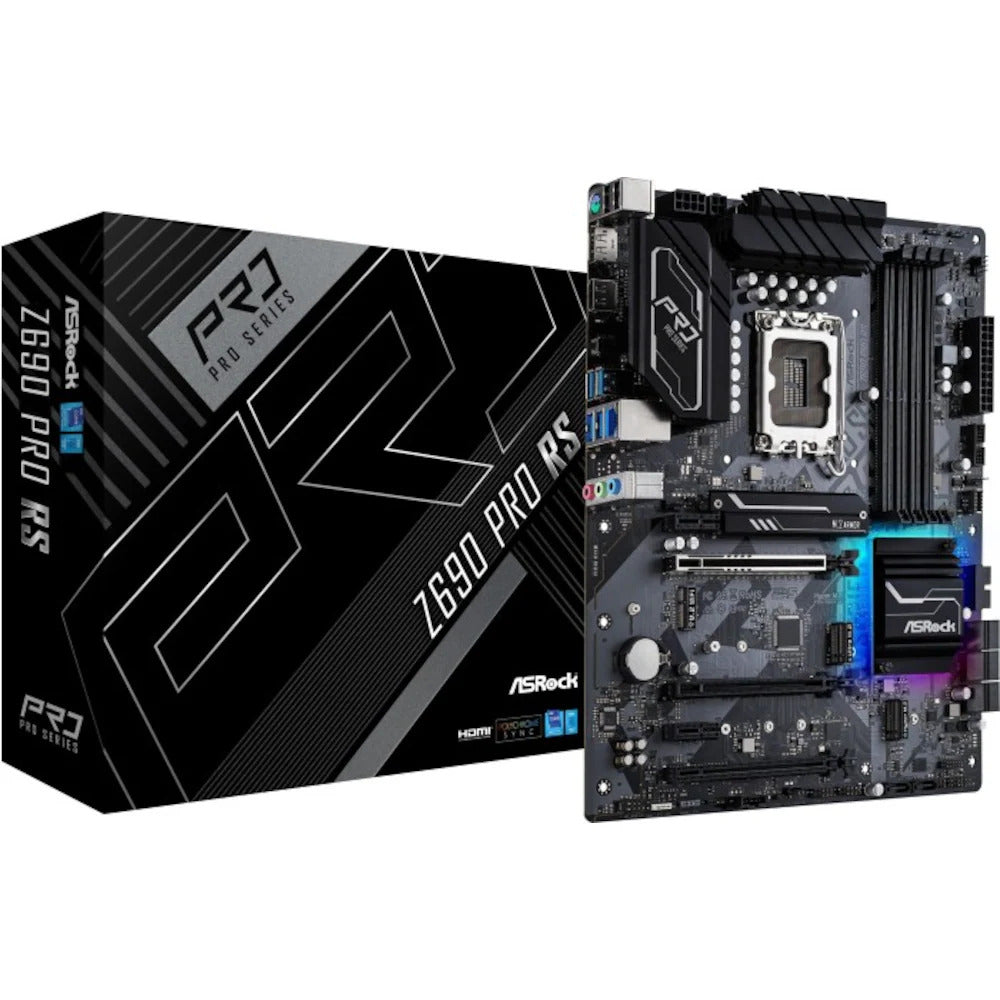

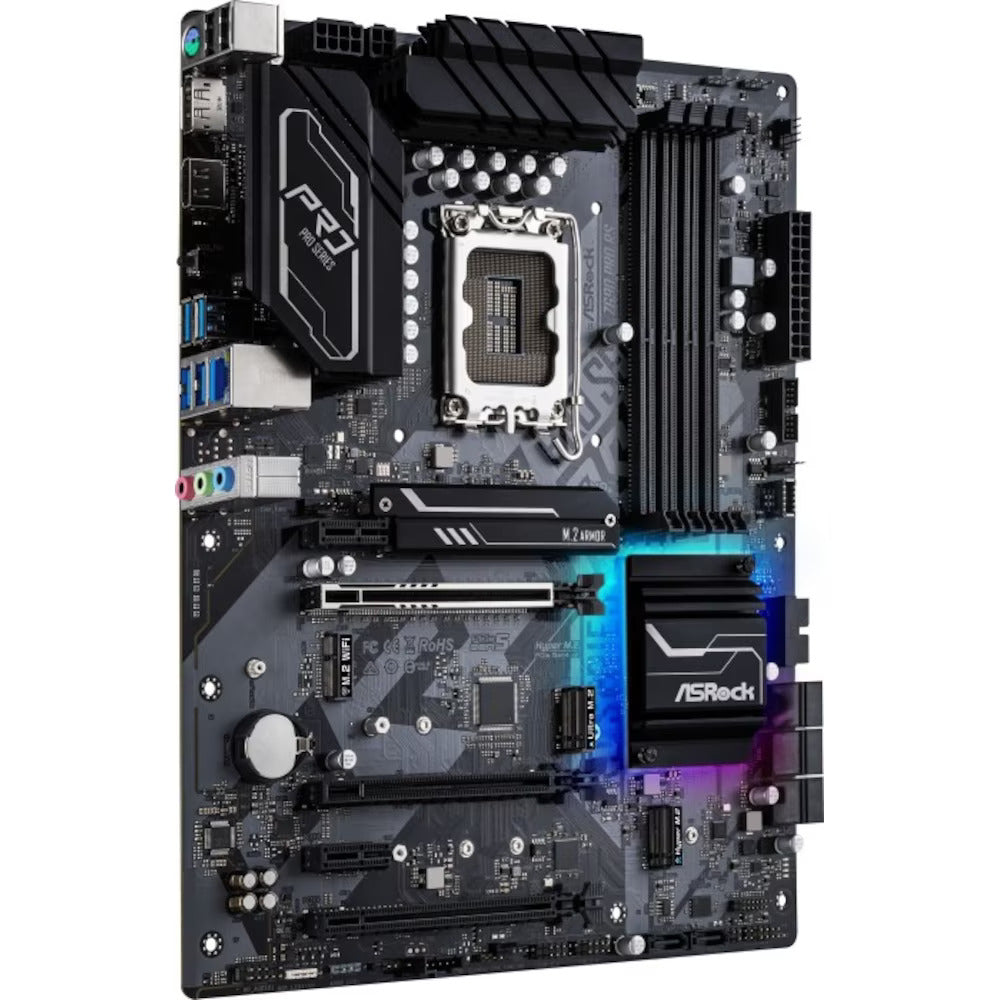

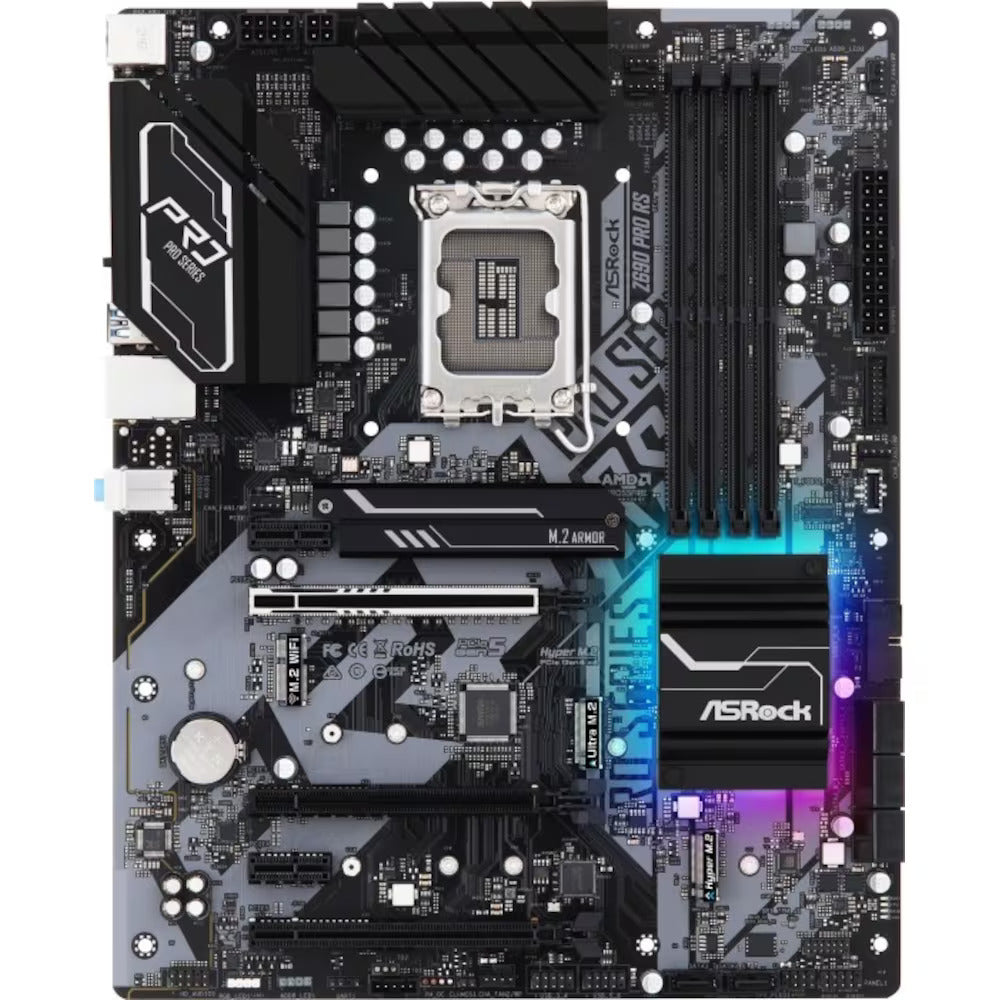

ASRock Z690 Pro RS - motherboard
ASRock Z690 Pro RS - motherboard
Couldn't load pickup availability
| Form factor/CPU |
ATX motherboard with socket Intel 1700 for Intel Core 12th generation |
| Chipset |
Intel Z690 |
| random access memory |
128 GB maximum RAM up to 5000MHz maximum clock speed 4x RAM slots (slots for working memory) Memory Type: DDR4 Dual channel architecture |
| Graphics |
Intel HD Graphics graphics chipset |
| Slots |
2x PCIe 3.0 x1 1x PCIe 3.0 x16 1x PCIe 4.0 x16 1x PCIe 5.0 x16 |
| connections |

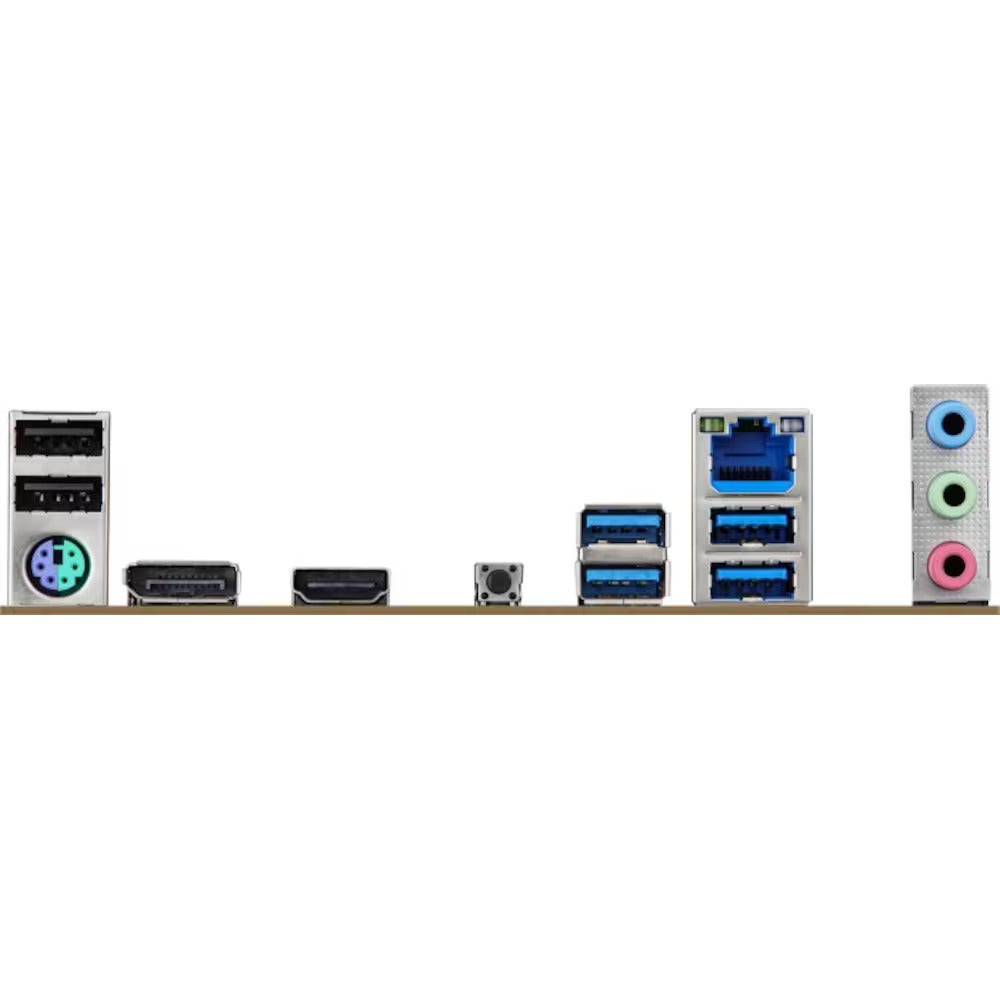

Internal connections: - 1 x SPI TPM header - 1 x Power LED and Speaker Header - 1 x RGB LED header* - 3 x addressable LED headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 headers (support 4 USB 2.0 ports) (supports ESD protection) - 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports) (supports ESD protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) External connections: - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen2 ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 ports (supports ESD protection) - 2 x USB 2.0 ports (supports ESD protection) - 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS flashback button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Network/Communication |
1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG |
| sound |
Realtek ALC897, |
| Supported Operating Systems |
Microsoft® Windows® 10/11 64-bit |
| scope of delivery |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA data cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket - 1 x Graphics Card Holder |
