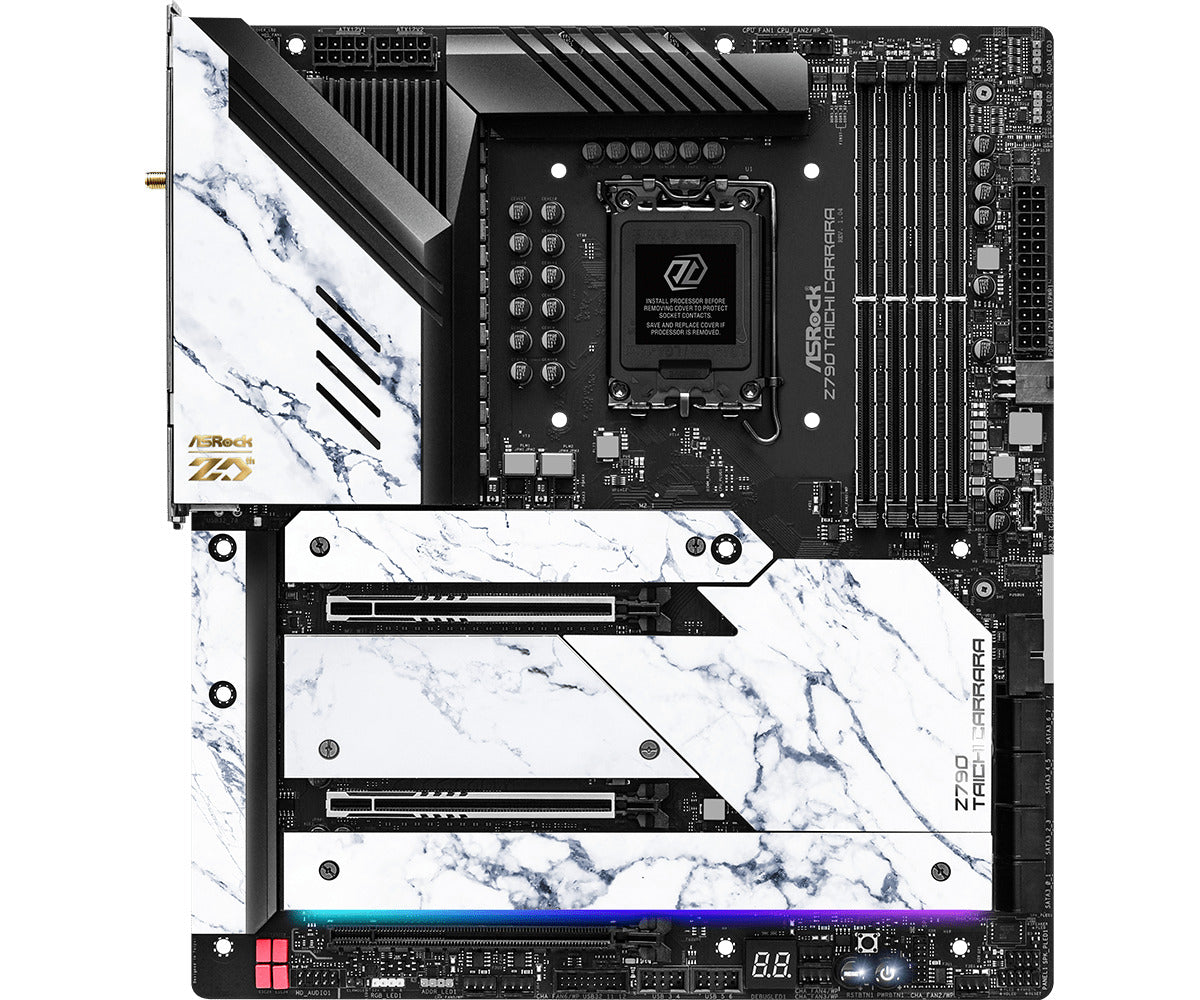

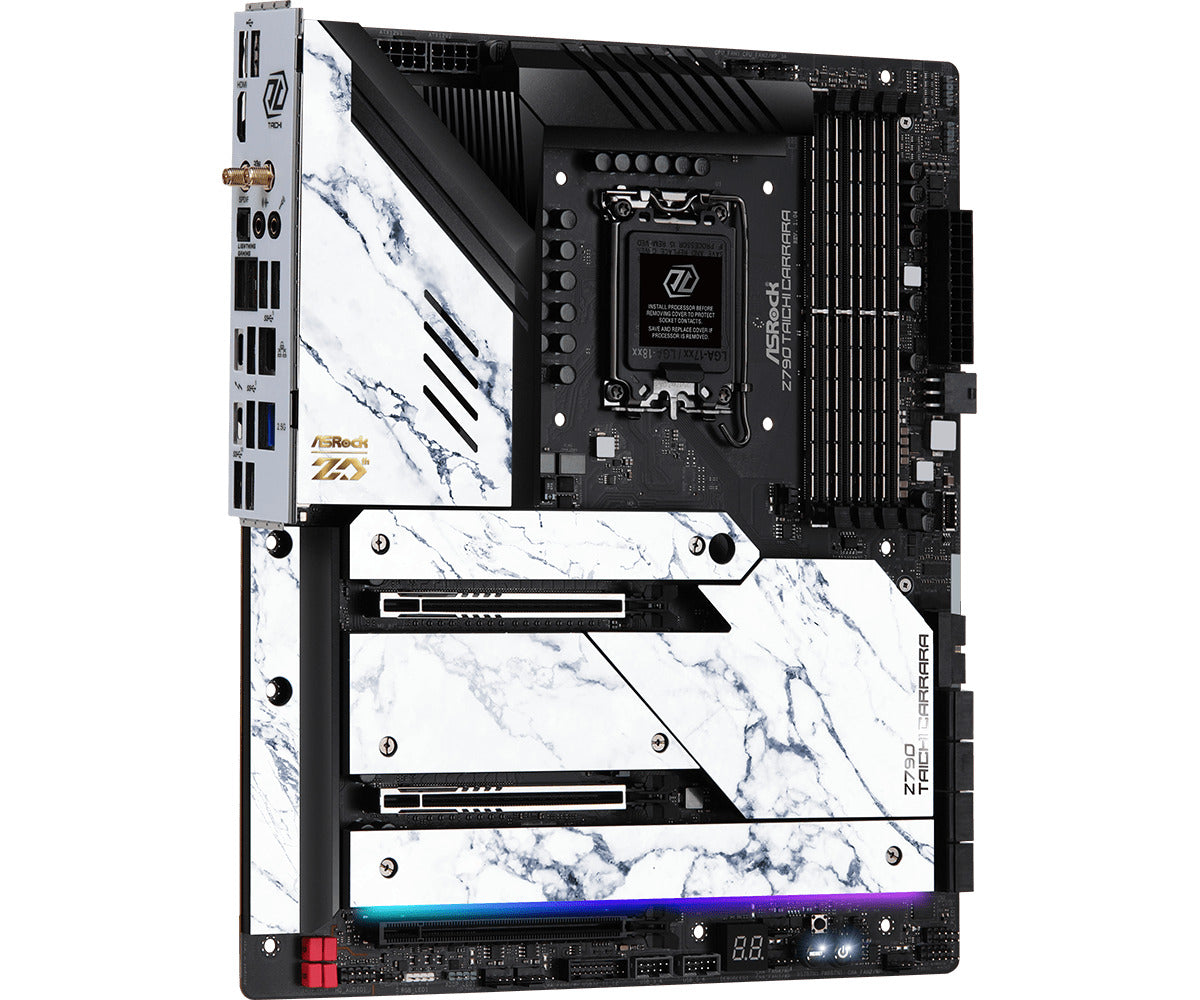

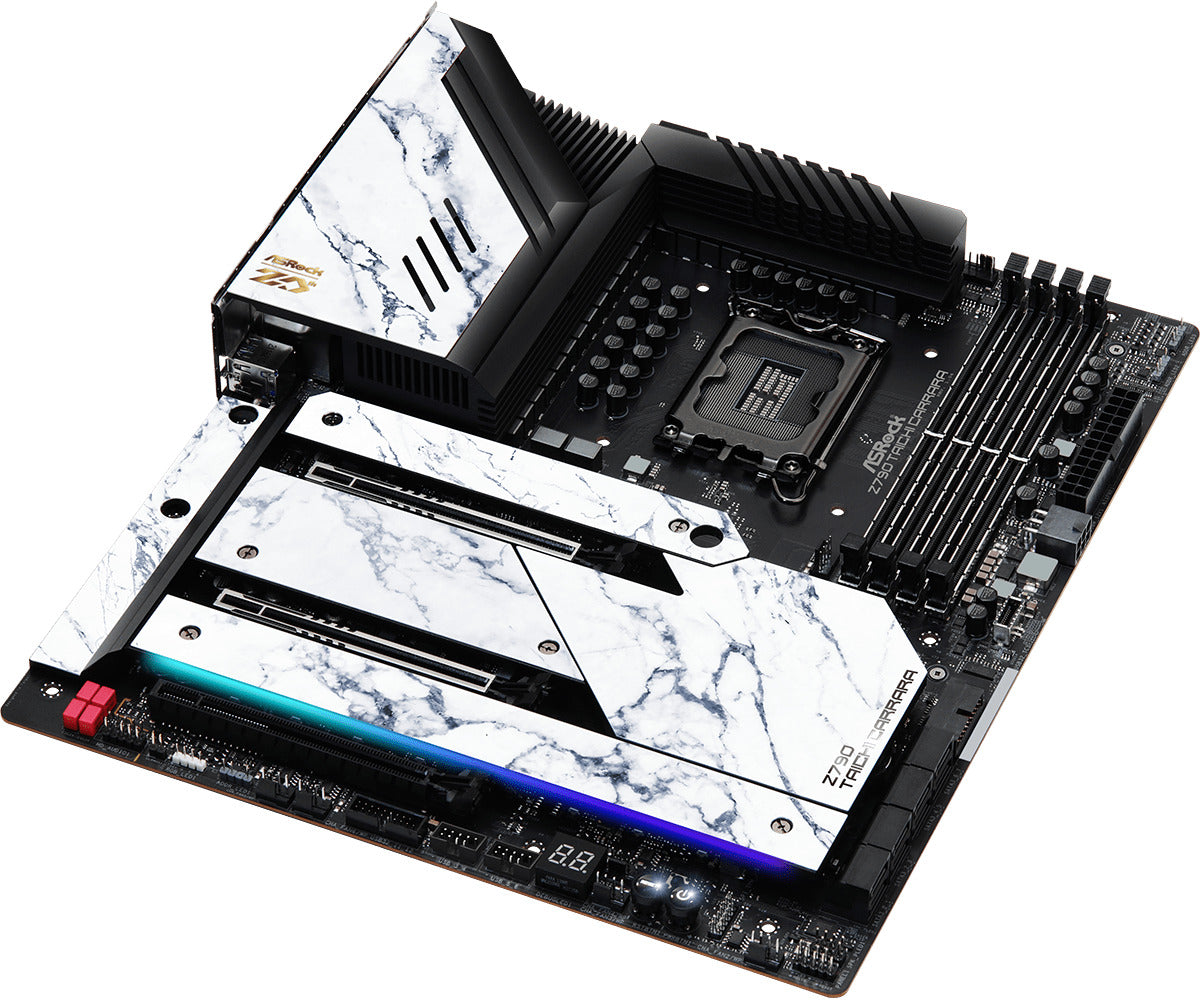

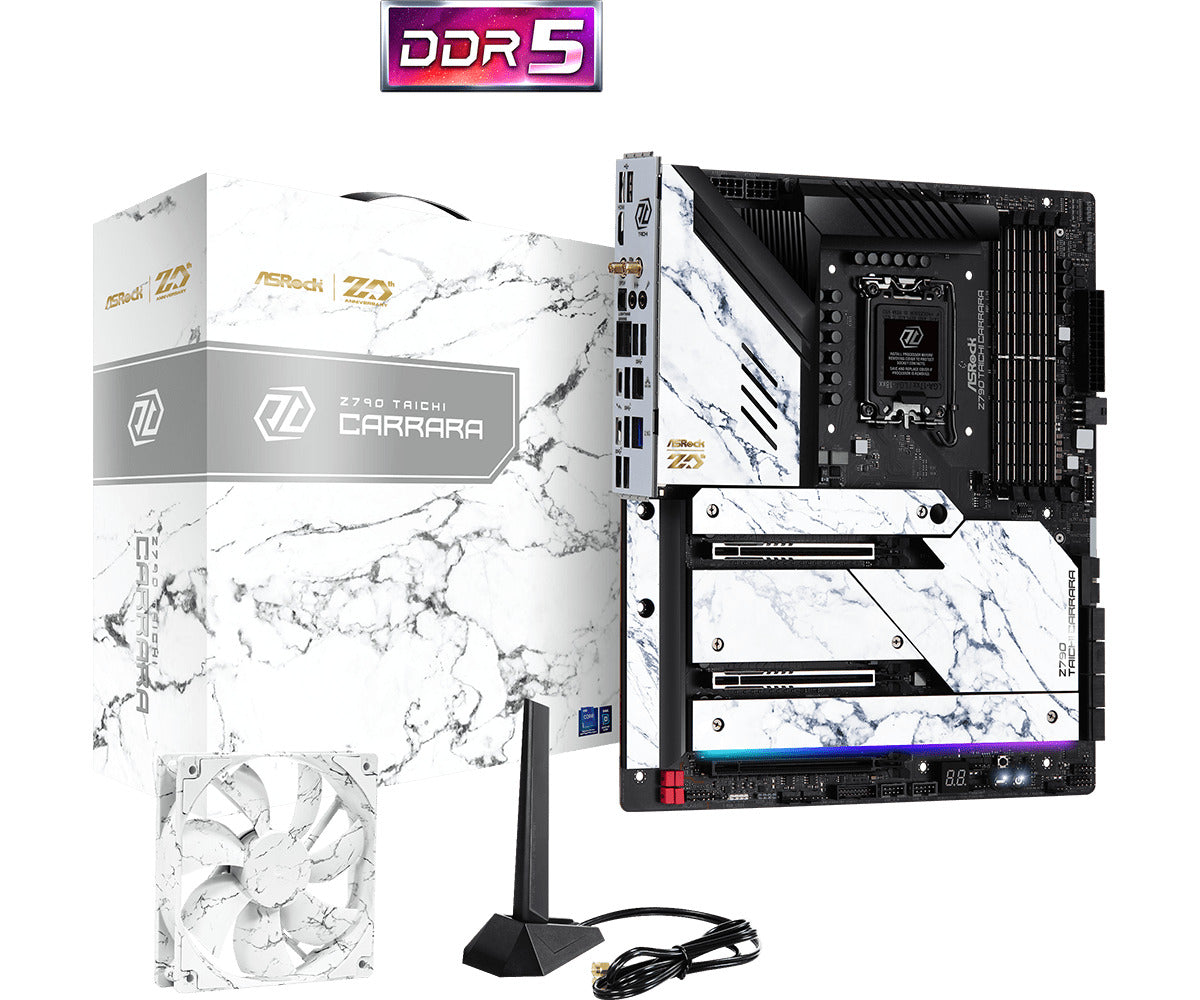

ASRock Z790 Taichi Carrara - motherboard
ASRock Z790 Taichi Carrara - motherboard
Regular price
€505,00
Regular price
Sale price
€505,00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Unique features
Excellent productivity
- PCIe Gen5 (Graphics, M.2)
- 12CM Carrara Edition fan
- Dual Channel DDR5
- USB4 Thunderbolt™ 4 Type-C ports (40 Gb/s)
Solid durability
- 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Cover
- Flexible integrated I/O shielding
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultra-fast connectivity
- Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E modules
- Killer DoubleShot™ Pro
- Front Panel Type-C 60W Fast Charging (20V/3A)
- ASRock Lightning gaming ports
EZ Update
- ASRock car driver installer
- PCIe Gen5 (Graphics, M.2)
- 12CM Carrara Edition fan
- Dual Channel DDR5
- USB4 Thunderbolt™ 4 Type-C ports (40 Gb/s)
Solid durability
- 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Cover
- Flexible integrated I/O shielding
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultra-fast connectivity
- Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E modules
- Killer DoubleShot™ Pro
- Front Panel Type-C 60W Fast Charging (20V/3A)
- ASRock Lightning gaming ports
EZ Update
- ASRock car driver installer
CPU
- Supports 13th Gen & 12th Gen and next gen Intel ® Core™ Processors (LGA1700)
- Supports Intel ® Hybrid Technology
- Supports Intel ® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel ® Adaptive Boost Technology (ABT)
- Supports ASRock Hyper BCLK Engine
- Supports Intel ® Hybrid Technology
- Supports Intel ® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel ® Adaptive Boost Technology (ABT)
- Supports ASRock Hyper BCLK Engine
Chipset
- Intel® Z790
random access memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM slots
- Supports DDR5 non-ECC, un-buffered memory up to 7400+(OC) *
- Max. capacity of system memory: 192GB
- Supports Intel ® Extreme Memory Profiles (XMP) 3.0
- 4 x DDR5 DIMM slots
- Supports DDR5 non-ECC, un-buffered memory up to 7400+(OC) *
- Max. capacity of system memory: 192GB
- Supports Intel ® Extreme Memory Profiles (XMP) 3.0
* 1DPC 1R Up to 7400+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
graphic
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 2 x Intel ® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz **
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 2 x Intel ® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz **
* Intel ® UHD Graphics Built-in visuals and the VGA outputs can only be used when using CPUs with an integrated GPU unit.
** Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Thunderbolt™ graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.
** Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Thunderbolt™ graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.
Audio
- 5.1 CH HD Audio with content protection (Realtek ALC4082 Audio Codec)
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABER9218 DAC for Front Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABER9218 DAC for Front Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro 1 x Gigabit LAN 10/100/1000 Mb/s (Intel ® I219V)
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro 1 x Gigabit LAN 10/100/1000 Mb/s (Intel ® I219V)
Wireless LAN
- 802.11ax Wi-Fi 6E modules
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports dual-band 2x2 160MHz with extended 6GHz band support *
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports dual-band 2x2 160MHz with extended 6GHz band support *
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro
* Wi-Fi 6E (6GHz band) is supported by Microsoft® Windows® 11. Availability depends on the different regulations of individual countries and regions. It will be activated (for supported countries) through Windows® Update and software updates as soon as it is available.
A 6GHz compatible router is required for 6E functionality.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
- 2 x PCIe 5.0 x16 slots (PCIE1 and PCIE2), support x16 or x8/x8 modes *
Chipset:
- 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)
- 2 x PCIe 5.0 x16 slots (PCIE1 and PCIE2), support x16 or x8/x8 modes *
Chipset:
- 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)
* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
If PCIE2 is occupied, M2_1 will be disabled.
If PCIE3 is occupied, SATA3_0~3 will be disabled.
Supports NVMe SSD as a boot hard drive
If PCIE2 is occupied, M2_1 will be disabled.
If PCIE3 is occupied, SATA3_0~3 will be disabled.
Supports NVMe SSD as a boot hard drive
Storage space
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 8 x SATA3 6.0 Gb/s connectors **
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 8 x SATA3 6.0 Gb/s connectors **
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as a boot hard drive
If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
If PCIE2 is occupied, M2_1 will be disabled.
M2_1 and M2_2 cannot be populated simultaneously.
** If PCIE3 is occupied, SATA3_0~3 will be disabled.
Supports NVMe SSD as a boot hard drive
If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
If PCIE2 is occupied, M2_1 will be disabled.
M2_1 and M2_2 cannot be populated simultaneously.
** If PCIE3 is occupied, SATA3_0~3 will be disabled.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
- 2 x USB4 Thunderbolt™ 4 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 10 x USB 3.2 Gen1 (6 rear, 4 front)
- 6 x USB 2.0 (2 rear, 4 front)
- 1 x USB 3.2 Gen2x2 Type-C (front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 10 x USB 3.2 Gen1 (6 rear, 4 front)
- 6 x USB 2.0 (2 rear, 4 front)
* All USB ports support ESD Protection
Connection
- 1 x SPI TPM header
- 1 x Power LED and Speaker Header
- 1 x RGB LED header *
- 3 x Addressable LED Headers **
- 1 x CPU fan connector (4-pin) ***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) *****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V power connectors (Hi-Density Power Connector)
- 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) ******
- 1 x Clear CMOS button
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
- 1 x Power LED and Speaker Header
- 1 x RGB LED header *
- 3 x Addressable LED Headers **
- 1 x CPU fan connector (4-pin) ***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) *****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V power connectors (Hi-Density Power Connector)
- 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) ******
- 1 x Clear CMOS button
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
* Supports up to 12V/3A total, 36W LED strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
***** CHA_FAN1~6/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.
****** Supports USB PD 3.0 up to 20V@3A (60W) fast charging when you install PSU's Power Cable to the 12V 6 pin Power Connector. If the 12V 6 pin Power Connector is not plugged, this header supports USB PD 3.0 up to 9V@3A (27W) fast charging.
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
***** CHA_FAN1~6/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.
****** Supports USB PD 3.0 up to 20V@3A (60W) fast charging when you install PSU's Power Cable to the 12V 6 pin Power Connector. If the 12V 6 pin Power Connector is not plugged, this header supports USB PD 3.0 up to 9V@3A (27W) fast charging.

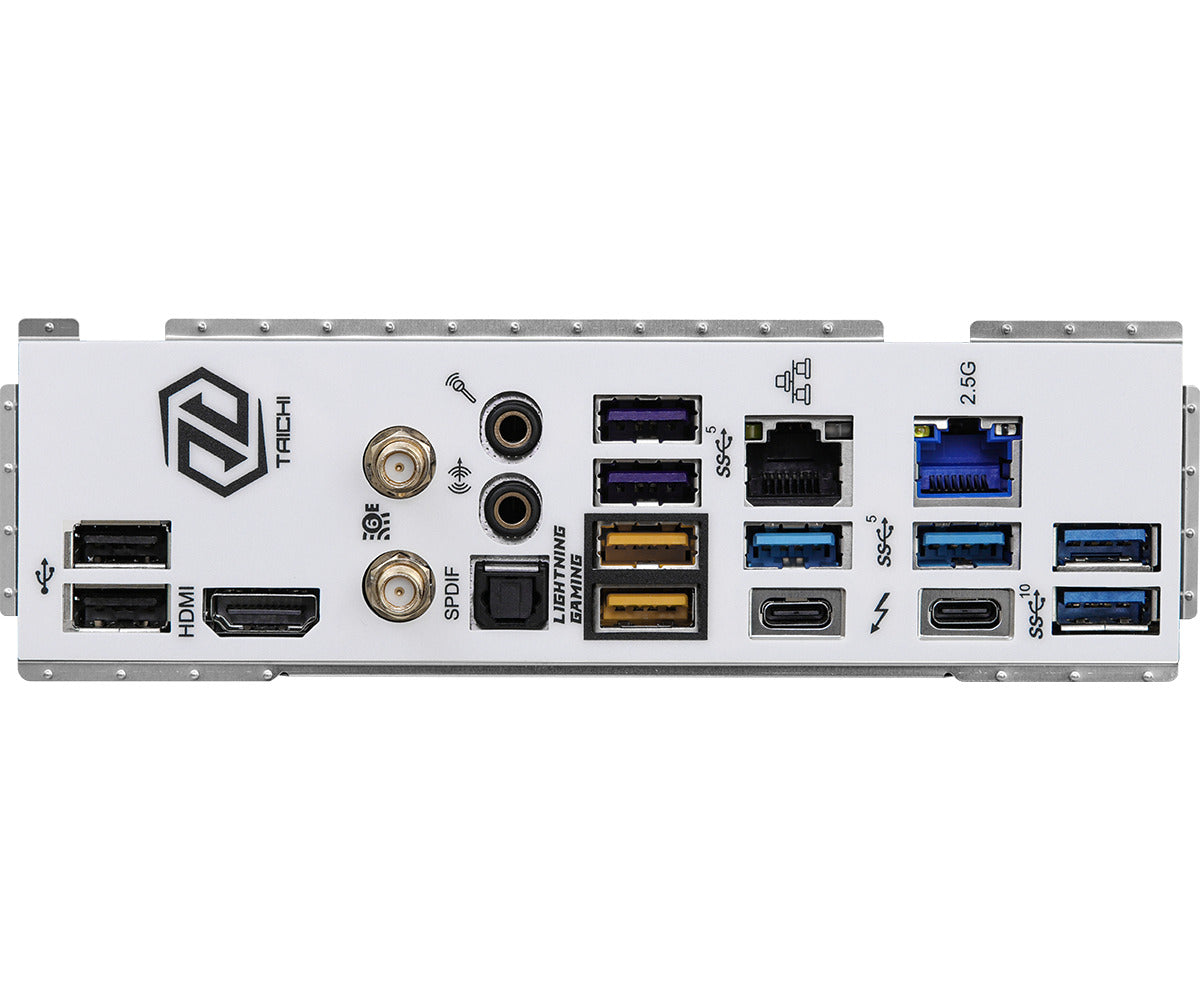

cover
- 2 x antenna ports
- 1 x HDMI port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Thunderbolt™ 4 Type-C ports (40Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) *
- 2 x USB 3.2 Gen2 Type-A port (10 Gb/s)
- 6 x USB 3.2 Gen1 ports (USB32_12 are Lightning gaming ports. USB32_34 support Ultra USB Power.)
- 2 x USB 2.0 ports
- 2 x RJ-45 LAN ports
- 1 x line out socket (gold audio jack)
- 1 x microphone input socket (Gold Audio Jack)
- 1 x HDMI port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Thunderbolt™ 4 Type-C ports (40Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) *
- 2 x USB 3.2 Gen2 Type-A port (10 Gb/s)
- 6 x USB 3.2 Gen1 ports (USB32_12 are Lightning gaming ports. USB32_34 support Ultra USB Power.)
- 2 x USB 2.0 ports
- 2 x RJ-45 LAN ports
- 1 x line out socket (gold audio jack)
- 1 x microphone input socket (Gold Audio Jack)
* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Software and UEFI
software
- ASRock Motherboard Utility (A-Tuning)
- Killer Control Center
- ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock car driver installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
- ASRock Motherboard Utility (A-Tuning)
- Killer Control Center
- ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock car driver installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
* These tools can be downloaded from the Live Update & APP Shop.
Product accessories
- 1 x User Manual
- 4 x SATA data cables
- 1 x Wireless Dongle USB Bracket
- 1 x 12CM Carrara Edition fan
- 1 x ASRock WiFi 2.4/5/6GHz antenna
- 4 x Screws for M.2 Sockets
- 4 x SATA data cables
- 1 x Wireless Dongle USB Bracket
- 1 x 12CM Carrara Edition fan
- 1 x ASRock WiFi 2.4/5/6GHz antenna
- 4 x Screws for M.2 Sockets
Form factor
- EATX Form Factor: 12.0-in x 10.5-in, 30.5cm x 26.7cm
- 8 layer PCB
- 8 layer PCB
operating system
- Microsoft ® Windows ® 10 64-bit / 11 64-bit
* Windows ® 10 only supports version 21H2 or later
Shipment
Shipment
The goods are delivered within the EU.
Deliveries are made exclusively with DHL.
Delivery to DHL Packstation possible.
Free shipping within Germany!
The shipping costs within the EU are €14.90.
Unless another period is specified, the goods will be delivered within 2-5 working days after conclusion of the contract (if agreed
prepayment after the time of your payment instruction).
Please note that there is no delivery on Sundays and public holidays.
Return
Return
Please note the information on the right of withdrawal under the Right of Withdrawal section at the bottom of the menu.
Not what you are looking for?
Are you looking for a special gaming PC or a product that you did not find in our shop? No problem! Contact us
easy and we will make you an individual offer.
