1 6

ASRock

ASRock Z790M PG Lightning/D4

ASRock Z790M PG Lightning/D4

€169,00
€169,00
Sale Sold out
Tax included. Shipping calculated at checkout.

Z790M PG Lightning/D4

  • Unique features

    Solid durability
    - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
    - Pre-installed I/O shield
    EZ Update
    - ASRock car driver installer
    EZ Troubleshooter
    - ASRock Post Status Checker


  • CPU

    - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
    - Supports Intel Hybrid Technology
    - Supports Intel Turbo Boost Max 3.0 Technology
    - Supports Intel Thermal Velocity Boost (TVB)
    - Supports Intel Adaptive Boost Technology (ABT)

  • Chipset

    - Intel Z790

  • random access memory

    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB
    - Supports Intel Extreme Memory Profiles (XMP) 2.0

    1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
    1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
    2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
    2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.

  • BIOS

    - 128Mb AMI UEFI Legal BIOS with GUI support
  • graphic
    - Intel Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

    Intel UHD Graphics Built-in Visuals and the VGA outputs can only be used when using CPUs with an integrated GPU unit.

  • Audio

    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio

  • LAN

    - Gigabit LAN 10/100/1000 Mb/s
    - Intel I219V

  • Slots

    CPU:
    - 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode
    Chipset:
    - 1 x PCIe 3.0 x16 slot (PCIE3), supports x4 mode
    - 1 x PCIe 3.0 x1 slot (PCIE2)
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire

    Supports NVMe SSD as a boot hard drive

  • Storage space

    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
    - 4 x SATA3 6.0Gb/s connectors

    Supports Intel Volume Management Device (VMD)
    Supports NVMe SSD as a boot hard drive
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices


    Requires additional M.2 NVMe expansion cards to support RAID 10

  • USB

    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 1 x USB 3.2 Gen2 Type-C (Rear)
    - 1 x USB 3.2 Gen1 Type-C (front)
    - 6 x USB 3.2 Gen1 Type-A (4 rear, 2 front)
    - 6 x USB 2.0 (2 rear, 4 front)
    All USB ports support ESD protection

  • Connection

    - 1 x SPI TPM header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x RGB LED header
    - 3 x addressable LED headers
    - 1 x CPU fan connector (4-pin)
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control)
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control)
    - 1 x 24 pin ATX power connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    Supports a total of up to 12V/3A, 36W LED strip

    Support in total up to 5V/3A, 15W LED Strip

    CPU_FAN1 supports the fan power up to 1A (12W).

    CPU_FAN2/WP supports the fan power up to 2A (24W).

    CHA_FAN1~4/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

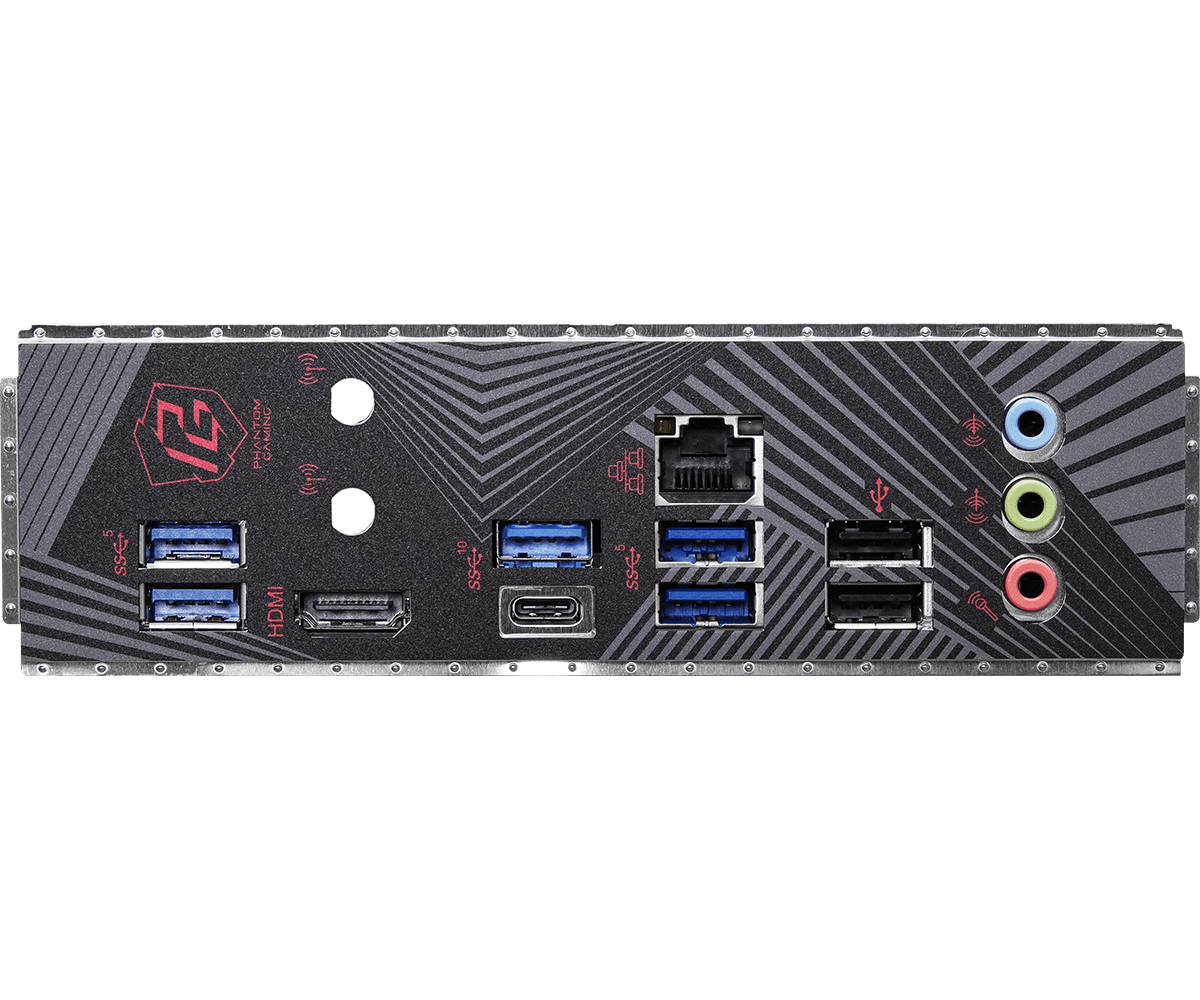

  • cover

    - 2 x antenna mounting points
    - 1 x HDMI port
    - 1 x USB 3.2 Gen2 Type-A port (10Gb/s)
    - 1 x USB 3.2 Gen2 Type-C port (10Gb/s)
    - 4 x USB 3.2 Gen1 ports
    - 2 x USB 2.0 ports
    - 1 x RJ-45 LAN port
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI

    software
    - ASRock Motherboard Utility (Phantom Gaming Setting)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock car driver installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    These tools can be downloaded from the Live Update & APP Shop.

  • Product accessories

    - 1 x User Manual
    - 2 x SATA data cables
    - 3 x Screws for M.2 Sockets
  • Form factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4cm x 24.4cm
  • operating system
    - Microsoft Windows 10 64-bit / 11 64-bit

    Windows 10 only supports version 21H2 or later
