Asus

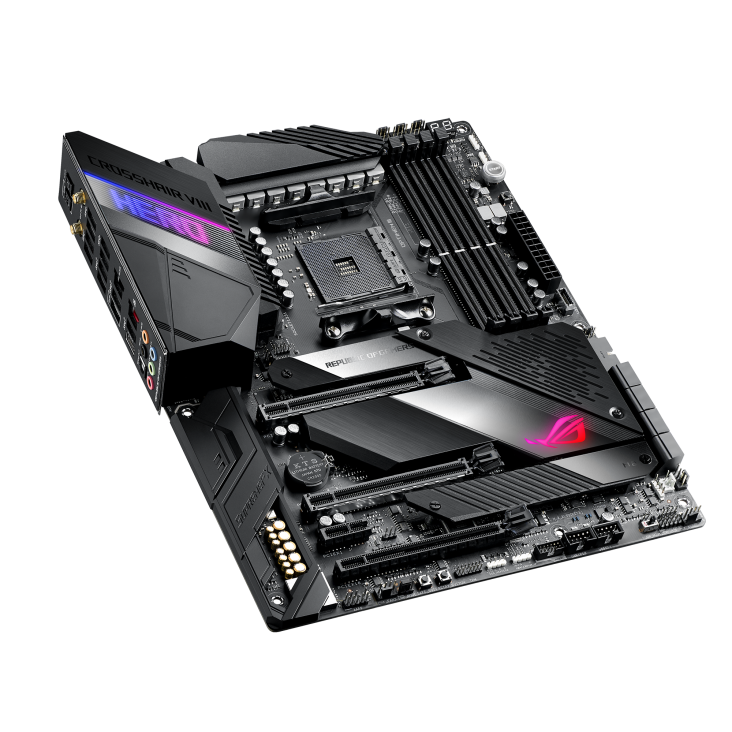

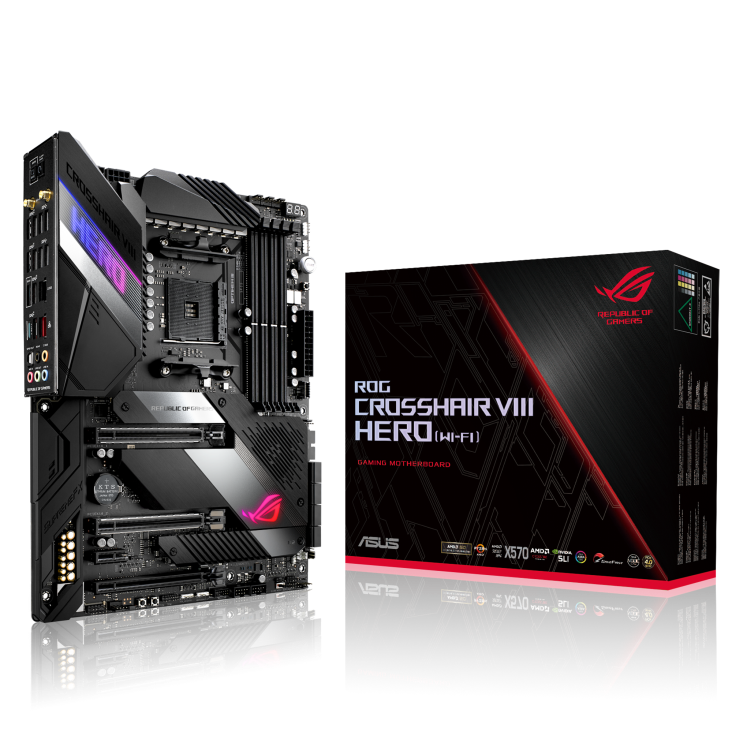

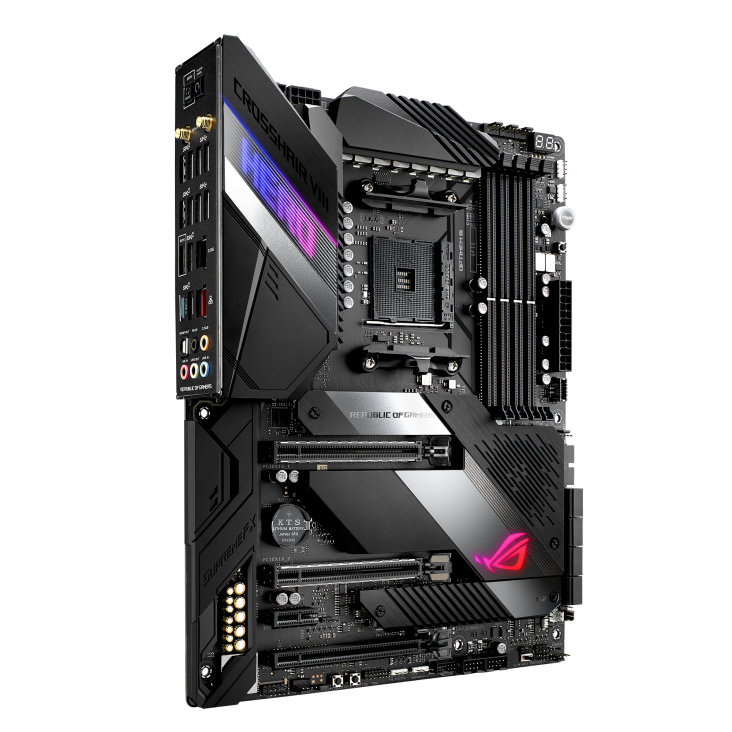

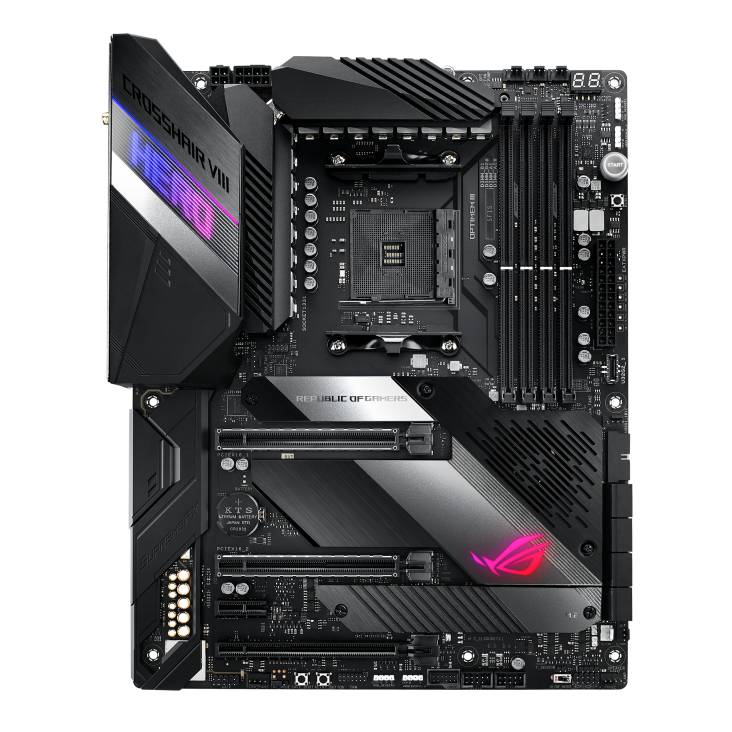

ASUS ROG Crosshair VIII Hero (WI-FI) motherboard

ASUS ROG Crosshair VIII Hero (WI-FI) motherboard

€259,00
€259,00
Sale Sold out
Tax included. Shipping calculated at checkout.

Processor/CPU

AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors


Chipset

AMD X570


random access memory

4 x DIMM, Max. 128GB, DDR4 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600 (OC)/3466(OC)/3400(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered memory
4 x DIMM, Max. 128GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
3rd Gen AMD Ryzen Processors
2nd Gen AMD Ryzen Processors
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3600(OC)/3466(OC)/3400(OC)/3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Un-buffered memory


Multi-GPU support

Supports NVIDIA 2-Way SLI Technology
Supports AMD 2-Way CrossFireX Technology
3rd and 2nd Gen AMD Ryzen Processors
Supports AMD 3-Way CrossFireX Technology


Expansion bays

1 x PCIe 4.0 x16
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x1


Storage system

8 x SATA 6Gb/s port(s),
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
Support Raid 0, 1, 10
3rd Gen AMD Ryzen Processors:
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors:
AMD X570 chipset:


LAN

Realtek RTL8125-CG 2.5G LAN
ROG GameFirst Technology
Intel I211-AT
ASUS LAN Guard


Wireless data network

Intel Wi-Fi 6 AX200
Up to 2.4Gbps transfer speed
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160


Bluetooth

Bluetooth 5.0


Audio

ROG SupremeFX8-Channel High Definition Audio CODEC
- Supports: Jack detection, multi-streaming, front panel jack retasking
- Optical S/PDIF out port(s) at back panel
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS Sound Unbound
- Supports up to 32-Bit/192kHz playback
- ESS ES9023P
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
- Sonic Radar III
- Impedance sense for front and rear headphone outputs
- High quality120dBSNR stereo playback output and113dBSNR recording input
- SupremeFX Shielding Technology


USB interfaces

4 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
6 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
3rd Gen AMD RyzenTM Processors
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
AMD X570 chipset


overclocking

Extreme Engine Digi+:
- IR3555 Powerstage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit:
- OptiMem III
- Safe boot button
- Slow mode
- LN2 mode
Extreme tweakers
ROG Patented Pre-mounted I/O Shield
- RAM disk
ROG Exclusive Software
- RAMCache III
- CPU Z
- GameFirst V


Special features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
- USB BIOS FlashBack
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- ASUS NODE: hardware control interface
- ASUS CPR(CPU Parameter Recall)
- Clear CMOS button
- Reset button
- Start button
- ReTry button
- ASUS Q Connector
- ASUS Q Code
AURA:
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q slot
- ASUS Q-DIMM
ASUS Exclusive Features :
- AI Suite 3
- AI Charger
- ASUS CrashFree BIOS 3
- Armory Crate
- ASUS EZ Flash 3
ASUS Q Design:

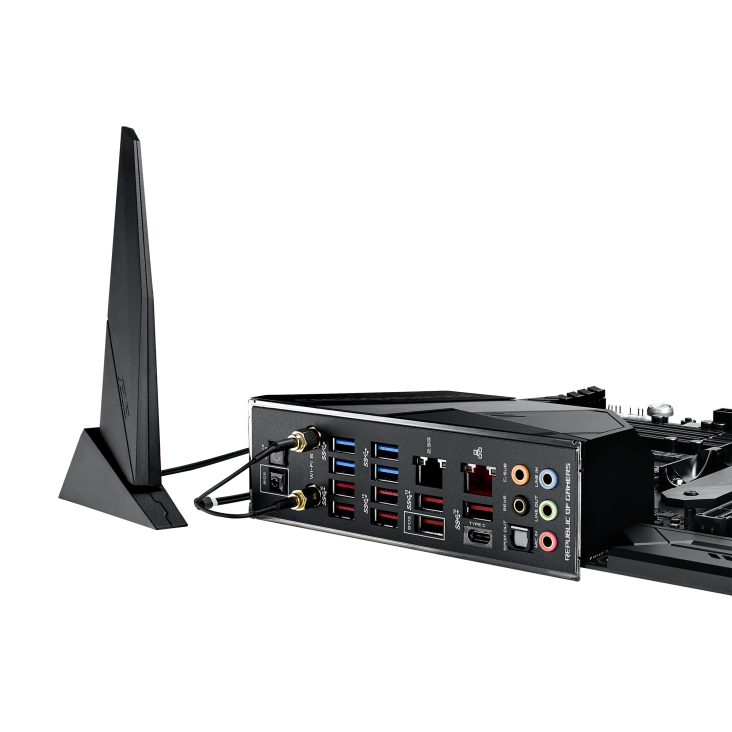

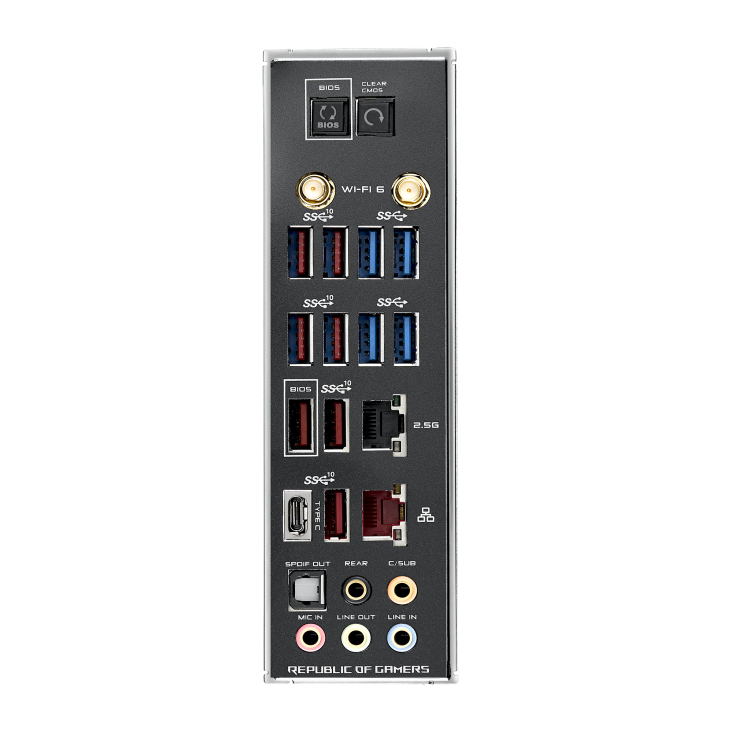

Connections (back)

1 x USB BIOS FlashBack Button(s)
5 x Gold-plated audio jacks
1 x Clear CMOS button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x ASUS Wi-Fi module
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out


internal connections

2 x Aura RGB Strip Headers
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
1 x 4-pin EATX 12V power connector
1 x 8-pin EATX 12V power connector
1 x LN2 mode jumper(s)
1 x W_FLOW header
1 x start button
1 x speaker connector
1 x H_AMP fan connector
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Safe Boot button
1 x ReTry button
1 x W_IN header
1 x W_OUT header
2 x Addressable Gen 2 header(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Node Connector(s)
1 x system panel connector
1 x T_Sensor Connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector supports additional 2 USB ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
8 x SATA 6Gb/s connector(s)
1 x CPU fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)

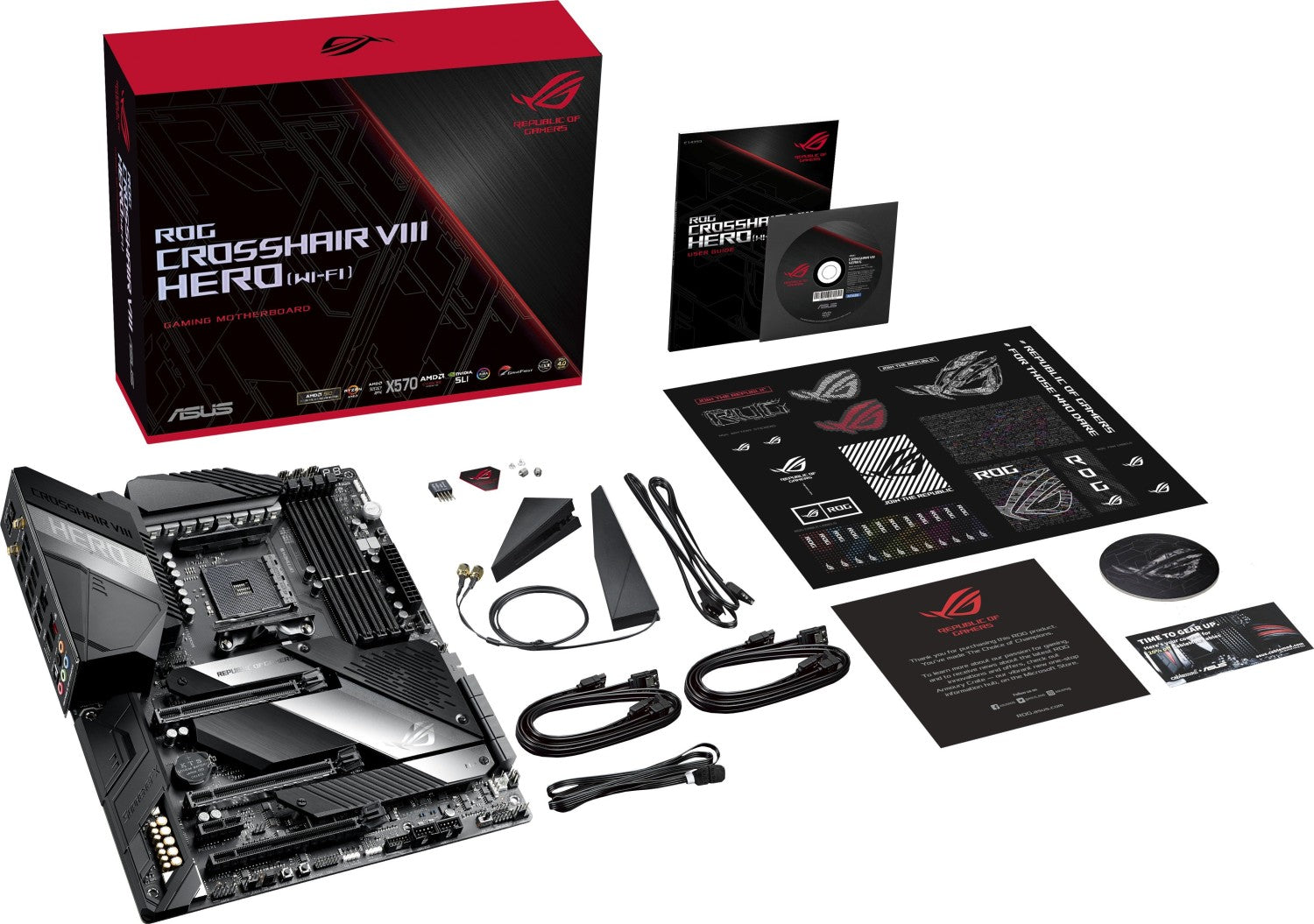

Accesories

4 x SATA 6Gb/s cable(s)
1 x ROG big sticker
1 x Q Connector
1 x Wi-Fi antenna(s)
1 x ROG coaster(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User's manual
1 x M.2 Screw Package
1 x Supporting DVD


BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2


Administration

WOL, PXE


Form factor

30.5cm x 24.4cm
ATX form factor
