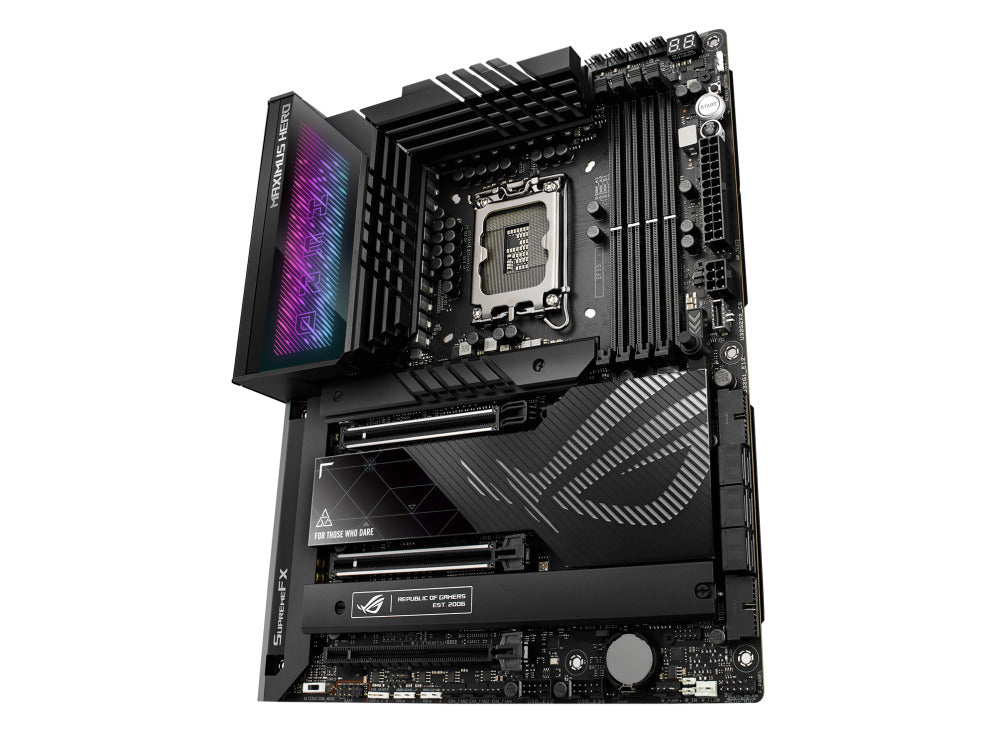

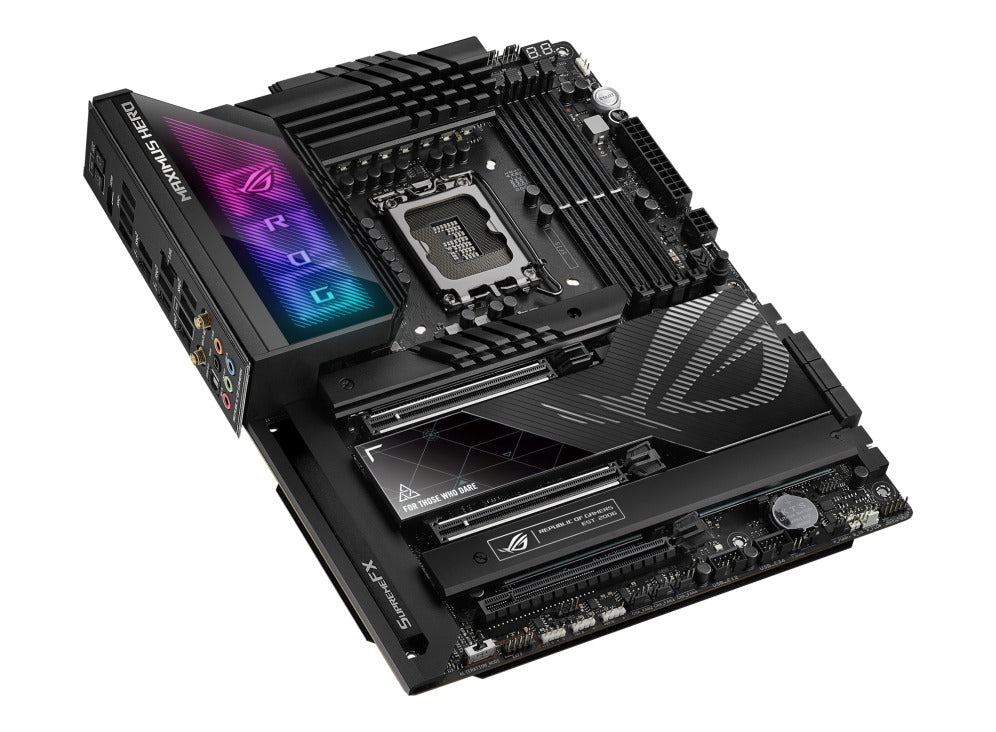

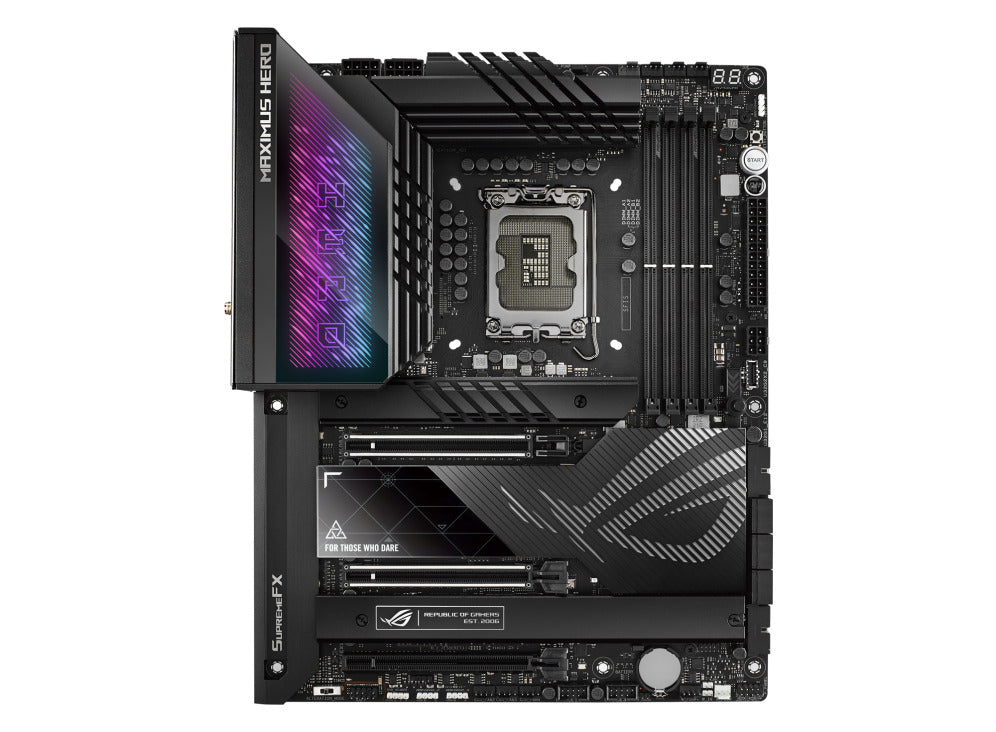

Kundenretoure ASUS ROG Maximus Z790 Hero - Mainboard

ATX Mainboard mit Sockel Intel 1700 für Intel Core 13. Generation, Intel Core 12. Generation

Intel Z790

128 GB maximaler Arbeitsspeicher bis 7800MHz maximale Taktung

4x RAM-Slots (Steckplätze für Arbeitsspeicher)

Speichertyp: DDR5

Dual Channel-Architektur

Intel® 13th & 12th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)

Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**

Intel® Z790 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**

Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***

6 x SATA 6Gb/s ports****

Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slo

Interne Anschlüsse:

Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x Start button

1 x ReTry button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x CPU Over Voltage jumper

1 x Alternative PCIe Mode switch

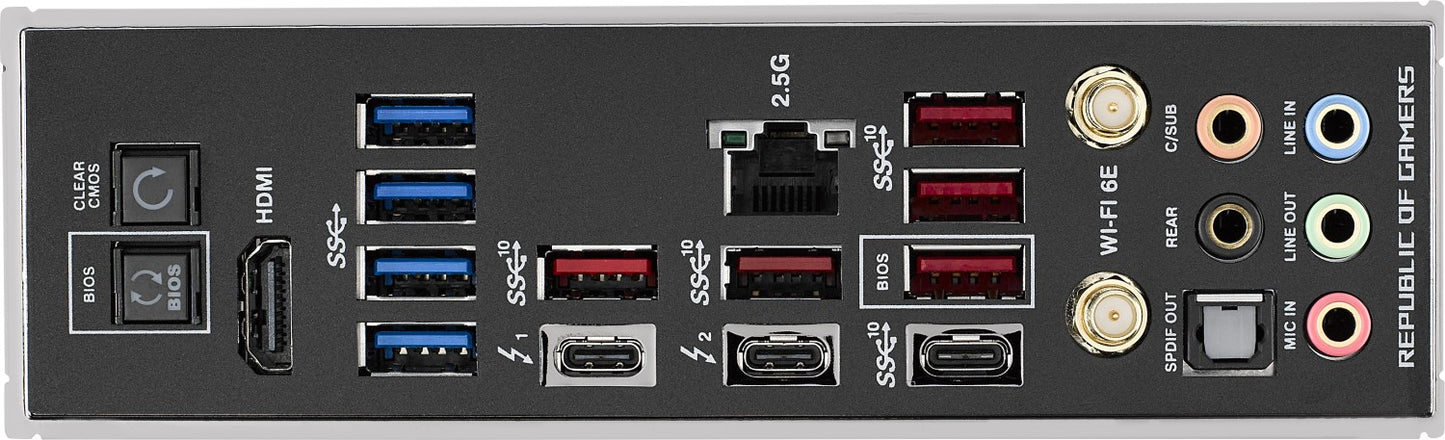

Externe Anschlüsse:

2 x Thunderbolt™ 4 USB Type-C® ports

6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

1 x Intel® 2.5Gb Ethernet

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Extreme Engine Digi+

ASUS Q-Design

ASUS Thermal Solution

ASUS EZ DIY

Aura Sync

Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support

Windows 10, 11

ROG Exclusive Software

ASUS Exclusive Software

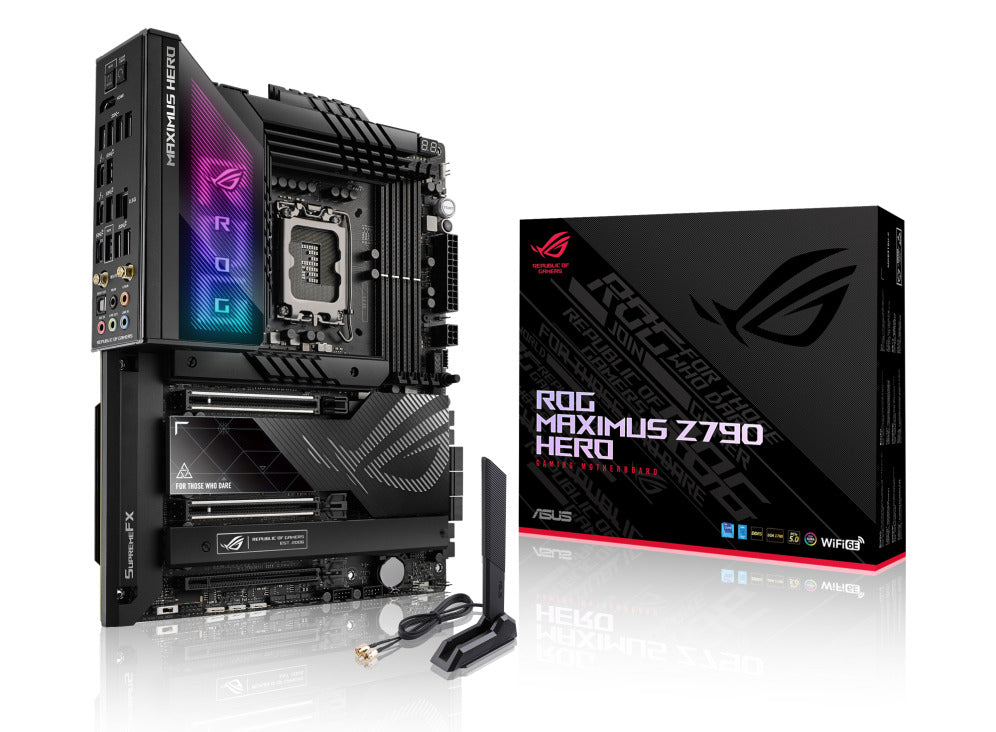

Cables

1 x ARGB RGB extension cable

4 x SATA 6Gb/s cables

ROG Hyper M.2 Card

1 x ROG Hyper M.2 Card with heatsink

2 x M.2 screw packages for ROG Hyper M.2 Card

Additional Cooling Kit

1 x Thermal pad for M.2

1 x DDR5 Fan holder

1 x VRM Fan holder

Miscellaneous

1 x ASUS Wi-Fi moving antennas

3 x M.2 backplate Q-Latch package

3 x M.2 backplate Rubber Packages

1 x Q-connector

1 x ROG stickers

1 x ROG key chain

1 x ROG VIP card

Installation Media

1 x USB drive with utilities and drivers

Handbuch
